Imported schema eml-attribute.xsd
Namespace eml://ecoinformatics.org/attribute-2.2.0
Annotations
'$RCSfile: eml-attribute.xsd,v $'
       Copyright: 1997-2002 Regents of the University of California,
                            University of New Mexico, and
                            Arizona State University
        Sponsors: National Center for Ecological Analysis and Synthesis and
                  Partnership for Interdisciplinary Studies of Coastal Oceans,
                     University of California Santa Barbara
                  Long-Term Ecological Research Network Office,
                     University of New Mexico
                  Center for Environmental Studies, Arizona State University
   Other funding: National Science Foundation (see README for details)
                  The David and Lucile Packard Foundation
     For Details: http://knb.ecoinformatics.org/

        '$Author: obrien $'
          '$Date: 2009-02-25 23:51:54 $'
      '$Revision: 1.123 $'

    This program is free software; you can redistribute it and/or modify
    it under the terms of the GNU General Public License as published by
    the Free Software Foundation; either version 2 of the License, or
    (at your option) any later version.

    This program is distributed in the hope that it will be useful,
    but WITHOUT ANY WARRANTY; without even the implied warranty of
    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
    GNU General Public License for more details.

    You should have received a copy of the GNU General Public License
    along with this program; if not, write to the Free Software
    Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA  02111-1307  USA
moduleName: eml-attribute

moduleDescription:


            The eml-attribute module - Attribute level information within
            dataset entities




recommendedUsage: any dataset that uses dataTable, spatialRaster,
        spatialVector, storedProcedure, view or otherEntity or in a custom
        module where one wants to document an attribute
        (variable)

standAlone: yes
Properties
attribute form default unqualified
element form default unqualified
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-attribute.xsd
Element attribute
Namespace eml://ecoinformatics.org/attribute-2.2.0
Annotations
tooltip: Attribute

summary: Characteristics of a 'field' or 'variable' in a data
        entity (ie. dataTable).

description: The content model for attribute is a CHOICE between
        "references" and all of the elements that let you describe the
        attribute (e.g., attributeName, attributeDefinition, precision). The
        attribute element allows a user to document the characteristics that
        describe a 'field' or 'variable' in a data entity (e.g. dataTable).
        Complete attribute descriptions are perhaps the most important aspect
        to making data understandable to others. An attribute element describes
        a single attribute or an attribute element can contain a reference
        to an attribute defined elsewhere. Using a reference means that the
        referenced attribute is (semantically) identical, not just in name
        but identical in its complete description. For example, if attribute
        "measurement1" in dataTable "survey1" has a precision of 0.1 and
        you are documenting dataTable survey2 which has an attribute called
        "measurement1" but the survey2's measurement1 has a precision of
        0.001 then these are different attributes and must be described
        separately.
Diagram
Diagram NO_NAMESPACE.tmp#AttributeType_id NO_NAMESPACE.tmp#AttributeType_system NO_NAMESPACE.tmp#AttributeType_scope NO_NAMESPACE.tmp#AttributeType_attributeName NO_NAMESPACE.tmp#AttributeType_attributeLabel NO_NAMESPACE.tmp#AttributeType_attributeDefinition NO_NAMESPACE.tmp#AttributeType_storageType NO_NAMESPACE.tmp#AttributeType_measurementScale NO_NAMESPACE.tmp#AttributeType_missingValueCode NO_NAMESPACE.tmp#AttributeType_accuracy NO_NAMESPACE.tmp#AttributeType_coverage NO_NAMESPACE.tmp#AttributeType_methods NO_NAMESPACE.tmp#AttributeType_annotation NO_NAMESPACE.tmp#ReferencesGroup_references resource-2_2_0.tmp#ReferencesGroup attribute-2_2_0.tmp#AttributeType
Type AttributeType
Properties
content complex
Model
Children accuracy, annotation, attributeDefinition, attributeLabel, attributeName, coverage, measurementScale, methods, missingValueCode, references, storageType
Instance
<attribute id="" scope="document" system="" xmlns="eml://ecoinformatics.org/attribute-2.2.0">
  <attributeName>{1,1}</attributeName>
  <attributeLabel>{0,unbounded}</attributeLabel>
  <attributeDefinition>{1,1}</attributeDefinition>
  <storageType typeSystem="http://www.w3.org/2001/XMLSchema-datatypes">{0,unbounded}</storageType>
  <measurementScale>{1,1}</measurementScale>
  <missingValueCode>{0,unbounded}</missingValueCode>
  <accuracy>{0,1}</accuracy>
  <coverage id="" scope="document" system="">{0,1}</coverage>
  <methods>{0,1}</methods>
  <annotation>{0,unbounded}</annotation>
  <references system="">{1,1}</references>
</attribute>
Attributes
QName Type Default Use
id IDType optional
scope ScopeType document optional
system SystemType optional
Source
<xs:element name="attribute" type="AttributeType">
  <xs:annotation>
    <xs:documentation>tooltip: Attribute summary: Characteristics of a 'field' or 'variable' in a data entity (ie. dataTable). description: The content model for attribute is a CHOICE between "references" and all of the elements that let you describe the attribute (e.g., attributeName, attributeDefinition, precision). The attribute element allows a user to document the characteristics that describe a 'field' or 'variable' in a data entity (e.g. dataTable). Complete attribute descriptions are perhaps the most important aspect to making data understandable to others. An attribute element describes a single attribute or an attribute element can contain a reference to an attribute defined elsewhere. Using a reference means that the referenced attribute is (semantically) identical, not just in name but identical in its complete description. For example, if attribute "measurement1" in dataTable "survey1" has a precision of 0.1 and you are documenting dataTable survey2 which has an attribute called "measurement1" but the survey2's measurement1 has a precision of 0.001 then these are different attributes and must be described separately.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-attribute.xsd
Element attributeList
Namespace eml://ecoinformatics.org/attribute-2.2.0
Annotations
tooltip: Attribute list

summary: A list of attributes

description: This is the root element of the eml-attribute module.
        It is mainly used for testing, but can also be used for creating
        stand-alone eml-attribute modules where a list of attributes is
        needed.
Diagram
Diagram NO_NAMESPACE.tmp#AttributeListType_id NO_NAMESPACE.tmp#AttributeListType_attribute NO_NAMESPACE.tmp#ReferencesGroup_references resource-2_2_0.tmp#ReferencesGroup attribute-2_2_0.tmp#AttributeListType
Type AttributeListType
Properties
content complex
Model
Children attribute, references
Instance
<attributeList id="" xmlns="eml://ecoinformatics.org/attribute-2.2.0">
  <attribute id="" scope="document" system="">{1,unbounded}</attribute>
  <references system="">{1,1}</references>
</attributeList>
Attributes
QName Type Use
id IDType optional
Source
<xs:element name="attributeList" type="AttributeListType">
  <xs:annotation>
    <xs:documentation>tooltip: Attribute list summary: A list of attributes description: This is the root element of the eml-attribute module. It is mainly used for testing, but can also be used for creating stand-alone eml-attribute modules where a list of attributes is needed.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-attribute.xsd

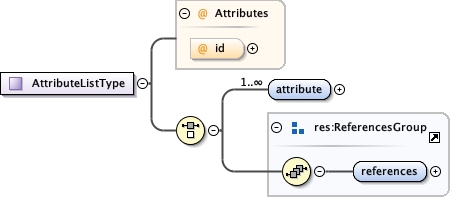

Complex Type AttributeListType
Namespace eml://ecoinformatics.org/attribute-2.2.0
Annotations
tooltip: Attribute List

summary: List of attributes

description: This complexType defines the structure of the
        attributeList element. The content model is a choice between one or
        more attribute elements, and references. References links to an
        attribute list defined elsewhere.
Diagram
Diagram NO_NAMESPACE.tmp#AttributeListType_id NO_NAMESPACE.tmp#AttributeListType_attribute NO_NAMESPACE.tmp#ReferencesGroup_references resource-2_2_0.tmp#ReferencesGroup
Used by
Model
Children attribute, references
Attributes
QName Type Use
id IDType optional
Source
<xs:complexType name="AttributeListType">
  <xs:annotation>
    <xs:documentation>tooltip: Attribute List summary: List of attributes description: This complexType defines the structure of the attributeList element. The content model is a choice between one or more attribute elements, and references. References links to an attribute list defined elsewhere.</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="attribute" type="AttributeType" maxOccurs="unbounded"/>
    <xs:group ref="res:ReferencesGroup"/>
  </xs:choice>
  <xs:attribute name="id" type="res:IDType" use="optional"/>
</xs:complexType>
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-attribute.xsd
Complex Type AttributeType
Namespace eml://ecoinformatics.org/attribute-2.2.0
Annotations
tooltip: Attribute Type

summary:
        Type definition for the content of an attribute (variable)
        that can be part of an entity.


description:  Type definition for the content of an
        attribute (variable) that can be part of an entity.
Diagram
Diagram NO_NAMESPACE.tmp#AttributeType_id NO_NAMESPACE.tmp#AttributeType_system NO_NAMESPACE.tmp#AttributeType_scope NO_NAMESPACE.tmp#AttributeType_attributeName NO_NAMESPACE.tmp#AttributeType_attributeLabel NO_NAMESPACE.tmp#AttributeType_attributeDefinition NO_NAMESPACE.tmp#AttributeType_storageType NO_NAMESPACE.tmp#AttributeType_measurementScale NO_NAMESPACE.tmp#AttributeType_missingValueCode NO_NAMESPACE.tmp#AttributeType_accuracy NO_NAMESPACE.tmp#AttributeType_coverage NO_NAMESPACE.tmp#AttributeType_methods NO_NAMESPACE.tmp#AttributeType_annotation NO_NAMESPACE.tmp#ReferencesGroup_references resource-2_2_0.tmp#ReferencesGroup
Used by
Model
Children accuracy, annotation, attributeDefinition, attributeLabel, attributeName, coverage, measurementScale, methods, missingValueCode, references, storageType
Attributes
QName Type Default Use
id IDType optional
scope ScopeType document optional
system SystemType optional
Source
<xs:complexType name="AttributeType">
  <xs:annotation>
    <xs:documentation>tooltip: Attribute Type summary: Type definition for the content of an attribute (variable) that can be part of an entity. description: Type definition for the content of an attribute (variable) that can be part of an entity.</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:sequence>
      <xs:element name="attributeName" type="res:NonEmptyStringType">
        <xs:annotation>
          <xs:documentation>tooltip: Attribute name summary: The name of the attribute description: Attribute name is official name of the attribute. This is usually a short, sometimes cryptic name that is used to refer to the attribute. Many systems have restrictions on the length of attribute names, and on the use of special characters like spaces in the name, so the attribute name is often not particularly useful for display (use attributeLabel for display). The attributeName is usually the name of the variable that is found in the header of a data file.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="attributeLabel" type="res:NonEmptyStringType" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>tooltip: Attribute label summary: A label for displaying an attribute name. description: A descriptive label that can be used to display the name of an attribute. This is often a longer, possibly multiple word name for the attribute than the attributeName. It is not constrained by system limitations on length or special characters. For example, an attribute with a name of 'spcode' might have an attributeLabel of 'Species Code'.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="attributeDefinition" type="res:NonEmptyStringType">
        <xs:annotation>
          <xs:documentation>tooltip: Attribute definition summary: Precise definition of the attribute description: This element gives a precise definition of attribute in the data entity (dataTable, spatialRaster, spatialVector, storedProcedure, view or otherEntity) being documented. It explains the contents of the attribute fully so that a data user could interpret the attribute accurately. Some additional information may also be found in the methods element as well.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="storageType" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>tooltip: Storage Type summary: Storage type hint for this field description: This element describes the storage type, for data in a RDBMS (or other data management system) field. As many systems do not provide for fine-grained restrictions on types, this type will often be a superset of the allowed domain defined in attributeDomain. Values for this field are by default drawn from the XML Schema Datatypes standard values, such as: integer, double, string, etc. If the XML Schema Datatypes are not used, the type system from which the values are derived should be listed in the 'typeSystem' attribute described below. This field represents a 'hint' to processing systems as to how the attribute might be represented in a system or language, but is distinct from the actual expression of the domain of the attribute. The field is repeatable so that the storageType can be indicated for multiple type systems (e.g., Oracle data types and Java data types).</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="xs:string">
              <xs:attribute name="typeSystem" type="xs:string" use="optional" default="http://www.w3.org/2001/XMLSchema-datatypes">
                <xs:annotation>
                  <xs:documentation>tooltip: Storage Type System summary: The system used to define the storage types. This should be an identifier of a well known and published typing system. description: The typeSystem attribute is the system used to define the storage types. This should be an identifier of a well known and published typing system. The default and recommended system is the XML Schema data type system. For details go to http://www.w3.org. If another system is used (such as Java or C++ types), typeSystem should be changed to match the system.</xs:documentation>
                </xs:annotation>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="measurementScale">
        <xs:annotation>
          <xs:documentation>tooltip: Measurement Scale summary: The measurement scale for the attribute. description: The measurementScale element indicates the type of scale from which values are drawn for the attribute. This provides information about the scale in which the data was collected.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:choice>
            <xs:element name="nominal">
              <xs:annotation>
                <xs:documentation>tooltip: Nominal scale summary: Characteristics used to define nominal (categorical) scale attributes description: This field is used for defining the characteristics of this variable if it is a nominal scale variable, which are variables that are categorical in nature. Nominal is used when numbers have only been assigned to a variable for the purpose of categorizing the variable. An example of a nominal scale is assigning the number 1 for male and 2 for female.</xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>

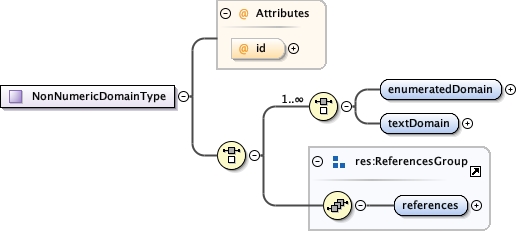

                  <xs:element name="nonNumericDomain" type="NonNumericDomainType"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="ordinal">
              <xs:annotation>
                <xs:documentation>tooltip: Ordinal scale summary: Characteristics used to define ordinal (ordered) scale attributes description: This field is used for defining the characteristics of this variable if it is an ordinal scale variable, which specify ordered values without specifying the magnitude of the difference between values. Ordinal is used when the categories have a logical or ordered relationship to each other. These types of scale allow one to distinguish the order of values, but not the magnitude of the difference between values. An example of an ordinal scale is a categorical survey where you rank a variable 1=good, 2=fair, 3=poor.</xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="nonNumericDomain" type="NonNumericDomainType"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="interval">
              <xs:annotation>
                <xs:documentation>tooltip: Interval scale summary: Characteristics used to define interval scale attributes description: This field is used for defining the characteristics of this variable if it is an interval scale variable, which specifies both the order and magnitude of values, but has no natural zero point. Interval is used for data which consist of equidistant points on a scale. The Celsius scale is an interval scale, since each degree is equal but there is no natural zero point (so, 20 C is not twice as hot as 10 C). zero point (so, 20 C is not twice as hot as 10 C).</xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="unit" type="UnitType"/>
                  <xs:element name="precision" type="PrecisionType" minOccurs="0"/>

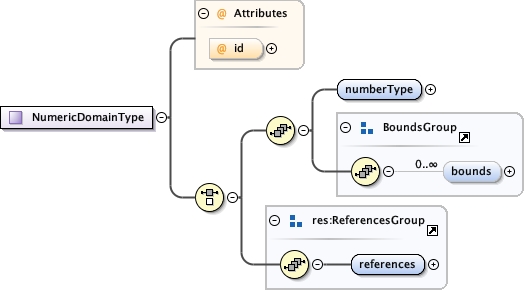

                  <xs:element name="numericDomain" type="NumericDomainType"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="ratio">
              <xs:annotation>
                <xs:documentation>tooltip: Ratio scale summary: Characteristics used to define ratio scale attributes description: This field is used for defining the characteristics of this variable if it is a ratio scale variable, which specifies the order and magnitude of values and has a natural zero point, allowing for ratio comparisons to be valid. Ratio is used for data which consists not only of equidistant points but also has a meaningful zero point, which allows ratios to have meaning. An example of a ratio scale would be the Kelvin temperature scale (200K is half as hot as 400K), and length in meters (e.g., 10 meters is twice as long as 5 meters).</xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="unit" type="UnitType"/>
                  <xs:element name="precision" type="PrecisionType" minOccurs="0"/>
                  <xs:element name="numericDomain" type="NumericDomainType"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="dateTime">
              <xs:annotation>
                <xs:documentation>tooltip: Date/Time scale summary: Characteristics used to define date and time attributes description: The dateTime field is used for defining the characteristics of the attribute if it contains date and time values. DateTime is used when the values fall on the Gregorian calendar system. DateTime values are special because they have properties of interval values (most of the time it is legitimate to treat them as interval values by converting them to a duration from a fixed point) but they sometimes only behave as ordinals (because the calendar is not predetermined, for some dateTime values one can only find out the order of the points and not the magnitude of the duration between those points). Thus, the dateTime scale provides the information necessary to properly understand and parse date and time values without improperly labeling them under one of the more traditional scales. Date and time values are unlike any other measured values. Note that the dateTime field would not be used if one is recording time durations. In that case, one should use a standard unit such as seconds, nominalMinute or nominalDay, or a customUnit that defines the unit in terms of its relationship to SI second.</xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="formatString" type="res:NonEmptyStringType">
                    <xs:annotation>
                      <xs:documentation>tooltip: Date/Time Format summary: A format string that describes the format for a date-time value from the Gregorian calendar. description: A format string that describes the format for a dateTime value from the Gregorian calendar. DateTime values should be expressed in a format that conforms to the ISO 8601 standard. This field allows one to specify the format string that should be used to decode the date or time value. To describe the format of an attribute containing dateTime values, construct a string representation of the format using the following symbols: Y year M month W month abbreviation (e.g., JAN) D day h hour m minute s second T time designator (demarcates date and time parts of date-time) Z UTC designator, indicating value is in UTC time . indicates a decimal fraction of a unit +/- indicates a positive or negative number, or a positive or negative time zone adjustment relative to UTC - indicates a separator between date components A/P am or pm designator Any other character in the format string is interpreted as a separator character. Here are some examples of the format strings that can be constructed. Format string Example value ------------------- ------------------ ISO Date YYYY-MM-DD 2002-10-14 ISO Datetime YYYY-MM-DDThh:mm:ss 2002-10-14T09:13:45 ISO Time hh:mm:ss 17:13:45 ISO Time hh:mm:ss.sss 09:13:45.432 ISO Time hh:mm.mm 09:13.42 Non-standard DD/MM/YYYY 14/10/2002 Non-standard MM/DD/YYYY 10/14/2002 Non-standard MM/DD/YY 10/14/02 Non-standard YYYY-MMM-DD 2002-OCT-14 Non-standard YYYYMMMDD 2002OCT14 Non-standard YYYY-MM-DD hh:mm:ss 2002-10-14 09:13:45 Some notes about these examples. First, the ISO 8601 standard is strict about the date components, their order, and the separators; e.g., date parts are upper case, and time parts are lower case. If no UTC relation information is given, the time is assumed to be in local time. Assuming local time is ambiguous even when communicating within a single time zone, given variations in Daylight Saving Time. Best practice is to follow the ISO 8601 format precisely and accurately. In particular, please note that these are all non-standard according to ISO: use of a slash (/) to separate date components, a space to separate date and time components, using a twelve-hour time with am/pm designator, placing any of the components out of descending order However, we recognize that existing data contain non-standard dates, and existing equipment (e.g., sensors) may still be producing non-standard dates. Further, data parsers often apply individual interpretations. E.g., Java interprets HH on a 24-hr clock and hh on a 12-hr clock, and MM as a padded integer for month but MMM as a 3-letter abbreviation. Consequently, the formatting string can contain characters as needed to accommodate existing data. Decimal dateTime values can be extended by indicating in the format that additional decimals can be used. Only the final unit (e.g., seconds in a time value) can use the extended digits according to the ISO 8601 standard. For example, to show indicate that seconds are represented to the nearest 1/1000 of a second, the format string would be "hh:mm:ss.sss". Note that this only indicates the number of decimals used to record the value, and not the precision of the measurement (see dateTimePrecision for that). Date and time values are from an interval scale, but it is extremely complex because of the vagaries of the calendar (e.g., leap years, and leap seconds). The duration between date and time values in the future is not even deterministic because leap seconds are based on current measurements of the earth's orbit. Consequently, date and time values are unlike any other measured values. The format string for dateTime values allows one to accurately calculate the duration in SI second units between two measured dateTime values, assuming that the conversion software has a detailed knowledge of the Gregorian calendar.</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="dateTimePrecision" type="res:NonEmptyStringType" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>tooltip: DateTime Precision summary: An indication of the precision of a date or time value description: A quantitative indication of the precision of a date or time measurement. The precision should be interpreted in the smallest units represented by the dateTime format. For example, if a dateTime value has a format of "hh:mm:ss.sss", then "seconds" are the smallest unit and the precision should be expressed in seconds. Thus, a precision value of "0.01" would mean that measurements were precise to the nearest hundredth of a second, even though the format string might indicate that values were written down with 3 decimal places.</xs:documentation>
                    </xs:annotation>
                  </xs:element>

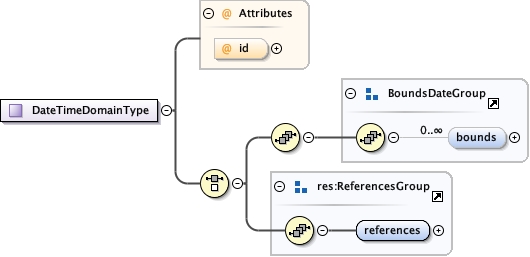

                  <xs:element name="dateTimeDomain" type="DateTimeDomainType" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>tooltip: DateTime Domain summary: See the summary for the type: DateTimeDomainType description: See the description for the type: DateTimeDomainType</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:choice>
        </xs:complexType>
      </xs:element>
      <xs:element name="missingValueCode" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>tooltip: Character for missing value summary: Character for missing value in the data of the field description: This element is to specify missing value in the data of the field. It is repeatable to allow for multiple different codes to be present in the attribute. Note that missing value codes should not be considered when determining if the observed values of an attribute all fall within the domain of the attribute (i.e., missing value codes should be parsed out of the data stream before examining the data for domain violations.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="code" type="res:NonEmptyStringType">
              <xs:annotation>
                <xs:documentation>tooltip: The missing value code itself. summary: The missing value code itself. description: The code element is the missing value code itself. Each missing value code should be entered in a separate element instance. The value entered is what is placed into a data grid if the value is missing for some reason.</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="codeExplanation" type="res:NonEmptyStringType">
              <xs:annotation>
                <xs:documentation>tooltip: Explanation of Missing value Code summary: An explanation of what the missing value code means. description: The codeExplanation element is an explanation of the meaning of the missing value code that was used, that is, the reason that there is a missing value. For example, an attribute might have a missing value code of '-99' to indicate that the data observation was not actually taken, and a code of '-88' to indicate that the data value was removed because of calibration errors.</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="accuracy" type="Accuracy" minOccurs="0">
        <xs:annotation>
          <xs:documentation>tooltip: The accuracy of the measured attribute summary: The accuracy of the attribute. This information should describe any accuracy information that is known about the collection of this data attribute. description: The accuracy element represents the accuracy of the attribute. This information should describe any accuracy information that is known about the collection of this data attribute. The content model of this metadata is taken directly from FGDC FGDC-STD-001-1998 section 2 with the exception of processContact, sourceCitation, and timePeriodInformation which either user XMLSchema types or use predefined EML types for these purposes.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="coverage" type="cov:Coverage" minOccurs="0">
        <xs:annotation>
          <xs:documentation>tooltip: Attribute coverage summary: An explanation of the coverage of the attribute. description: An explanation of the coverage of the attribute. This specifically indicates the spatial, temporal, and taxonomic coverage of the attribute in question when that coverage deviates from coverages expressed at a higher level (e.g., entity or dataset). Please see the eml-coverage module for complete documentation.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="methods" type="md:MethodsType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>tooltip: Attribute methods summary: An explanation of the methods involved in the collection of this attribute. description: An explanation of the methods involved in the collection of this attribute. These specifically supplement or possibly override methods provided at a higher level such as entity or dataset. Please see the eml-methods module for complete documentation.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="annotation" type="sem:SemanticAnnotation" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>tooltip: Semantic Annotation summary: A precisely-defined semantic statement for this attribute. description: An annotation represents a precisely-defined semantic statement that applies to this attribute. This semantic statement is used to associate precise measurement semantics with the attribute, such as the property that is being measured (e.g., oboe:Characteristic), the entity that is being measured (e.g., oboe:Entity), and the measurement standard for interpreting values for this attribute (e.g., oboe:Standard). Each annotation consists of a propertyURI and valueURI that define the property and value of the statement. The subject of the statement is the eml:attribute that contains the annotation. The associated labels can be used to display the statement to users. Each URI is resolvable to a controlled vocabulary that provides a definition, relationships to other terms, and multiple labels for displaying the statement.</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
    <xs:group ref="res:ReferencesGroup"/>
  </xs:choice>
  <xs:attribute name="id" type="res:IDType" use="optional"/>
  <xs:attribute name="system" type="res:SystemType" use="optional"/>
  <xs:attribute name="scope" type="res:ScopeType" use="optional" default="document"/>
</xs:complexType>
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-attribute.xsd
Complex Type NonNumericDomainType
Namespace eml://ecoinformatics.org/attribute-2.2.0
Annotations
tooltip: Non-numeric domain

summary:

description: The non-numeric domain field describes the domain
        of the attribute being documented.  It can describe two
        different types of domains: enumerated and text.  Enumerated
        domains are lists of values that are explicitly provided as
        legitimate values.  Only values from that list should occur
        in the attribute.  They are often used for response codes
        such as "HIGH" and "LOW".  Text domains are used for attributes
        that allow more free-form text fields, but still permit some
        specification of the value-space through pattern matching.  A
        text domain is usually used for comment and notes attributes,
        and other character attributes that don't have a precise set of
        constrained values. This is an important field for post processing
        and error checking of the dataset. It represents a formal
        specification of the value space for the attribute, and so there
        should never be a value for the attribute that falls outside of
        the set of values prescribed by the domain.
Diagram
Diagram NO_NAMESPACE.tmp#NonNumericDomainType_id NO_NAMESPACE.tmp#NonNumericDomainType_enumeratedDomain NO_NAMESPACE.tmp#NonNumericDomainType_textDomain NO_NAMESPACE.tmp#ReferencesGroup_references resource-2_2_0.tmp#ReferencesGroup
Used by
Model
Children enumeratedDomain, references, textDomain
Attributes
QName Type Use
id IDType optional
Source
<xs:complexType name="NonNumericDomainType">
  <xs:annotation>
    <xs:documentation>tooltip: Non-numeric domain summary: description: The non-numeric domain field describes the domain of the attribute being documented. It can describe two different types of domains: enumerated and text. Enumerated domains are lists of values that are explicitly provided as legitimate values. Only values from that list should occur in the attribute. They are often used for response codes such as "HIGH" and "LOW". Text domains are used for attributes that allow more free-form text fields, but still permit some specification of the value-space through pattern matching. A text domain is usually used for comment and notes attributes, and other character attributes that don't have a precise set of constrained values. This is an important field for post processing and error checking of the dataset. It represents a formal specification of the value space for the attribute, and so there should never be a value for the attribute that falls outside of the set of values prescribed by the domain.</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:choice maxOccurs="unbounded">
      <xs:element name="enumeratedDomain">
        <xs:annotation>
          <xs:documentation>tooltip: Enumerated domain summary: Description of any coded values associated with the attribute. description: The enumeratedDomain element describes any code that is used as a value of an attribute. These codes can be defined here in the metadata as a list with definitions (preferred), can be referenced by pointing to an external citation or URL where the codes are defined, or can be referenced by pointing at an entity that contains the code value and code definition as two attributes. For example, data might have a variable named 'site' with values 'A', 'B', and 'C', and the enumeratedDomain would explain how to interpret those codes.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:choice>
            <xs:element name="codeDefinition" maxOccurs="unbounded">
              <xs:annotation>
                <xs:documentation>tooltip: Code Definition summary: A codes and its definition description: This element gives the value of a particular code and its definition. It is repeatable to allow for a list of codes to be provided.</xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="code" type="res:NonEmptyStringType">
                    <xs:annotation>
                      <xs:documentation>tooltip: Code summary: Code value allowed in the domain description: The code element specifies a code value that can be used in the domain</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="definition" type="res:NonEmptyStringType">
                    <xs:annotation>
                      <xs:documentation>tooltip: Code definition summary: Definition of the associated code description: The definition describes the code with which it is associated in enough detail for scientists to interpret the meaning of the coded values.</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="source" type="res:NonEmptyStringType" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>tooltip: Source of code summary: The name of the source for this code and its definition description: The source element is the name of the source from which this code and its associated definition are drawn. This is commonly used for identifying standard coding systems, like the FIPS standard for postal abbreviations for states in the US. In other cases, the coding may be the researcher's customized way of recording and classifying their data, and no external "source" would exist.</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
                <xs:attribute name="order" type="xs:long" use="optional">
                  <xs:annotation>
                    <xs:documentation>tooltip: Order summary: Mechanism for specifying what the order of the code-definitions included should be description: Ordinal scale measurements have a discrete list of values with a specific ordering of those values. This attributes specifies that order from low to high. For example, for LOW, MEDIUM, HIGH, the order attribute might be "LOW=1, MEDIUM=2 and HIGH=3".</xs:documentation>
                  </xs:annotation>
                </xs:attribute>
              </xs:complexType>
            </xs:element>
            <xs:element name="externalCodeSet">
              <xs:annotation>
                <xs:documentation>tooltip: External code set summary: A reference to an externally defined set of codes used in this attribute description: The externalCodeSet element is a reference to an externally defined set of codes used in this attribute. This can either be a citation (using the eml-citation module) or a URL. Using an externally defined codeset (rather than a codeDefinition) means that interpretation of the data is dependent upon future users being able to obtain the code definitions, so care should be taken to only use highly standardized external code sets that will be available for many years. If at all possible, it is preferable to define the codes inline using the codeDefinition element.</xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="codesetName" type="res:NonEmptyStringType">
                    <xs:annotation>
                      <xs:documentation>tooltip: Code Set Name summary: The name of an externally defined code set description: The codesetName element is the name of an externally defined code set.</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:choice maxOccurs="unbounded">
                    <xs:element name="citation" type="cit:CitationType">
                      <xs:annotation>
                        <xs:documentation>tooltip: Citation summary: A citation for the code set reference description: The citation element is a citation for the code set reference</xs:documentation>
                      </xs:annotation>
                    </xs:element>
                    <xs:element name="codesetURL" type="xs:anyURI">
                      <xs:annotation>
                        <xs:documentation>tooltip: Code set URL summary: A URL for the code set reference description: The codesetURL element is a URL for the code set reference.</xs:documentation>
                      </xs:annotation>
                    </xs:element>
                  </xs:choice>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="entityCodeList">
              <xs:annotation>
                <xs:documentation>tooltip: Entity Code List summary: A code list that is defined in a data table description: The entityCodeList is a list of codes and their definitions in a data entity that is present in this dataset. The fields specify exactly which entity it is, and which attributes of that entity contain the codes, their definitions, and the order of the values.</xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="entityReference" type="res:NonEmptyStringType">
                    <xs:annotation>
                      <xs:documentation>tooltip: Entity Reference summary: A reference to the id of the entity in which the code list has been defined description: The entityReference element is a reference to the id of the entity in which the code list has been defined. This entity must have been defined elsewhere in the metadata and have an id that matches the value of this element.</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="valueAttributeReference" type="res:NonEmptyStringType">
                    <xs:annotation>
                      <xs:documentation>tooltip: Value Attribute Reference summary: A reference to the id of the attribute that contains the list of codes description: The valueAttributeReference element is a reference to the id of the attribute that contains the list of codes. This attribute must have been defined elsewhere in the metadata and have an id that matches the value of this element.</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="definitionAttributeReference" type="res:NonEmptyStringType">
                    <xs:annotation>
                      <xs:documentation>tooltip: Definition Attribute Reference summary: A reference to the id of the attribute that contains the definition of codes description: The definitionAttributeReference element is a reference to the id of the attribute that contains the definition of codes. This attribute must have been defined elsewhere in the metadata and have an id that matches the value of this element.</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="orderAttributeReference" type="res:NonEmptyStringType" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>tooltip: Order Attribute Reference summary: A reference to the id of the attribute that contains the order of codes description: The orderAttributeReference element is a reference to the id of the attribute that contains the order of codes. The values in this attribute are integers indicating increasing values of the categories. This attribute must have been defined elsewhere in the metadata and have an id that matches the value of this element.</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:choice>
          <xs:attribute name="enforced" use="optional" default="yes">
            <xs:annotation>
              <xs:documentation>tooltip: Enforced Domain summary: Indicates whether the enumerated domain values enforced. description: Indicates whether the enumerated domain values are the only allowable values for the domain. In some exceedingly rare cases, users may wish to present a list of value codes in enumeratedDomain but not formally restrict the value space for the attribute to those values. If so, they can indicate this by setting the enforced attribute to the value no. Acceptable values are yes and no, and the default value is yes.</xs:documentation>
            </xs:annotation>
            <xs:simpleType>
              <xs:restriction base="xs:string">
                <xs:enumeration value="yes"/>
                <xs:enumeration value="no"/>
              </xs:restriction>
            </xs:simpleType>
          </xs:attribute>
        </xs:complexType>
      </xs:element>
      <xs:element name="textDomain">
        <xs:annotation>
          <xs:documentation>tooltip: Text domain summary: Description of a free-text domain pattern for the attribute description: The textDomain element describes a free text domain for the attribute. By default, if a pattern is missing or empty, then any text is allowed. If a pattern is present, then it is interpreted as a regular expression constraining the allowable character sequences for the attribute. This domain type is most useful for describing extensive text domains that match a pattern but do not have a finite set of values. Another use is for describing the domain of textual fields like comments that allow any legal string value.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="definition" type="res:NonEmptyStringType">
              <xs:annotation>
                <xs:documentation>tooltip: Text domain definition summary: Definition of what this text domain represents description: The element definition provides the text domain definition, that is, what kinds of text expressions are allowed for this attribute. If there is a pattern supplied, the definition element expresses the meaning of the pattern, For example, a particular pattern may be meant to represent phone numbers in the US phone system format. A definition element may also be used to extend an enumerated domain.</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="pattern" type="res:NonEmptyStringType" minOccurs="0" maxOccurs="unbounded">
              <xs:annotation>
                <xs:documentation>tooltip: Text pattern summary: Regular expression pattern constraining the attribute description: The pattern element specifies a regular expression pattern that constrains the set of allowable values for the attribute. This is commonly used to define template patterns for data such as phone numbers where the attribute is text but the values are not drawn from an enumeration. If the pattern field is empty or missing, it defaults to '.*', which matches any string, including the empty string. Repeated pattern elements are combined using logical OR. The regular expression syntax is the same as that used in the XML Schema Datatypes Recommendation from the W3C.</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="source" type="res:NonEmptyStringType" minOccurs="0">
              <xs:annotation>
                <xs:documentation>tooltip: Source of text domain summary: The name of the source for this text domain. description: The source element is the name of the source from which this text domain and its associated definition are drawn. This is commonly used for identifying standard coding systems, like the FIPS standard for postal abbreviations for states in the US. In other cases, the coding may be a researcher's custom way of recording and classifying their data, and no external "source" would exist.</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:choice>
    <xs:group ref="res:ReferencesGroup"/>
  </xs:choice>
  <xs:attribute name="id" type="res:IDType" use="optional"/>
</xs:complexType>
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-attribute.xsd
Complex Type UnitType
Namespace eml://ecoinformatics.org/attribute-2.2.0
Annotations
tooltip: Unit of measurement

summary: Unit of measurement for data in the
        field

description: This field identifies the unit of measurement
        for this attribute. It is a choice of either a standard unit,
        or a custom unit. If it is a custom unit,
        the definition of the unit must be provided in the document using
        the STMML syntax, and the name provided in the customUnit element must
        reference the id of its associated STMML definition precisely. For
        further information on STMML (http://www.xml-cml.org/stmml/) or
        see stmml.xsd which is included with the EML 2.0 distribution for
        details.
Diagram
Diagram NO_NAMESPACE.tmp#UnitType_standardUnit NO_NAMESPACE.tmp#UnitType_customUnit
Used by
Model
Children customUnit, standardUnit
Source
<xs:complexType name="UnitType">
  <xs:annotation>
    <xs:documentation>tooltip: Unit of measurement summary: Unit of measurement for data in the field description: This field identifies the unit of measurement for this attribute. It is a choice of either a standard unit, or a custom unit. If it is a custom unit, the definition of the unit must be provided in the document using the STMML syntax, and the name provided in the customUnit element must reference the id of its associated STMML definition precisely. For further information on STMML (http://www.xml-cml.org/stmml/) or see stmml.xsd which is included with the EML 2.0 distribution for details.</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="standardUnit" type="unit:StandardUnitDictionary">
      <xs:annotation>
        <xs:documentation>tooltip: Standard Unit summary: The name of a standard unit used to make this measurement description: Use the standardUnit element if the unit for this attribute has been defined in the Standard Unit Dictionary. The list of "standard" units includes the SI base units and many compound units based on SI, plus and some commonly used units which are not SI. The list is by no means exhaustive. If the unit you need is not part of this list, then the customUnit field should be used instead. Standard units have been described using STMML. See the documentation for the Type for more information.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="customUnit" type="res:NonEmptyStringType">
      <xs:annotation>
        <xs:documentation>tooltip: Custom Unit summary: The name of a custom unit used to make this measurement. description: The customUnit element is for units that are not part of the standard list provided with EML. The customUnit must correspond to an id in the document where its definition is provided using the STMML syntax. The customUnit definition will most likely be in the additionalMetadata section.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:choice>
</xs:complexType>
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-attribute.xsd
Complex Type PrecisionType
Namespace eml://ecoinformatics.org/attribute-2.2.0
Annotations
tooltip: Precision

summary: The precision of the measurement.

description: Precision indicates how close together or how
        repeatable measurements are.  A precise measuring instrument will give
        very nearly the same result each time it is used. This means that
        someone interpreting the data should expect that if a measurement were
        repeated, most measured values would fall within the interval specified
        by the precision. The value of precision should be expressed in the
        same unit as the measurement. For example, for an attribute with unit
        "meter", a precision of "0.1" would be interpreted to mean that most
        repeat measurements would fall within an interval of 1/10th of a meter.
Diagram
Diagram
Type extension of xs:float
Used by
Source
<xs:complexType name="PrecisionType">
  <xs:annotation>
    <xs:documentation>tooltip: Precision summary: The precision of the measurement. description: Precision indicates how close together or how repeatable measurements are. A precise measuring instrument will give very nearly the same result each time it is used. This means that someone interpreting the data should expect that if a measurement were repeated, most measured values would fall within the interval specified by the precision. The value of precision should be expressed in the same unit as the measurement. For example, for an attribute with unit "meter", a precision of "0.1" would be interpreted to mean that most repeat measurements would fall within an interval of 1/10th of a meter.</xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:extension base="xs:float"/>
  </xs:simpleContent>
</xs:complexType>
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-attribute.xsd
Complex Type NumericDomainType
Namespace eml://ecoinformatics.org/attribute-2.2.0
Annotations
tooltip: Numeric Domain

summary: Numeric domain of attribute specifying allowed
        values.

description: The numericDomain element specifies the
        minimum and maximum values of a numeric attribute. These
        are theoretical or permitted values (ie. prescriptive), and
        not necessarily the actual minimum and maximum observed in
        a given data set (descriptive). The information in
        numericDomain and in precision together constitute
        sufficient information to decide upon an appropriate
        system specific data type for representing a particular
        attribute. For example, an attribute with a numeric domain
        from 0-50,000 and a precision of 1 could be represented in
        the C language using a 'long' value, but if the precision is
        changed to '0.5' then a 'float' type would be needed.
Diagram
Diagram NO_NAMESPACE.tmp#NumericDomainType_id NO_NAMESPACE.tmp#NumericDomainType_numberType NO_NAMESPACE.tmp#BoundsGroup_bounds attribute-2_2_0.tmp#BoundsGroup NO_NAMESPACE.tmp#ReferencesGroup_references resource-2_2_0.tmp#ReferencesGroup
Used by
Model
Children bounds, numberType, references
Attributes
QName Type Use
id IDType optional
Source
<xs:complexType name="NumericDomainType">
  <xs:annotation>
    <xs:documentation>tooltip: Numeric Domain summary: Numeric domain of attribute specifying allowed values. description: The numericDomain element specifies the minimum and maximum values of a numeric attribute. These are theoretical or permitted values (ie. prescriptive), and not necessarily the actual minimum and maximum observed in a given data set (descriptive). The information in numericDomain and in precision together constitute sufficient information to decide upon an appropriate system specific data type for representing a particular attribute. For example, an attribute with a numeric domain from 0-50,000 and a precision of 1 could be represented in the C language using a 'long' value, but if the precision is changed to '0.5' then a 'float' type would be needed.</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:sequence>
      <xs:element name="numberType" type="NumberType">
        <xs:annotation>
          <xs:documentation>tooltip: number type</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:group ref="BoundsGroup"/>
    </xs:sequence>
    <xs:group ref="res:ReferencesGroup"/>
  </xs:choice>
  <xs:attribute name="id" type="res:IDType" use="optional"/>
</xs:complexType>
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-attribute.xsd
Simple Type NumberType
Namespace eml://ecoinformatics.org/attribute-2.2.0
Annotations
description: This is the enumeration for the allowed values
of the element numberType.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration natural
tooltip: Natural numbers

summary: Natural numbers


description: The number type for this attribute consists
            of the 'natural' numbers, otherwise known as the counting numbers:
            1, 2, 3, 4, ...
enumeration whole
tooltip: Whole numbers

summary: Whole numbers


description: The number type for this attribute consists
            of the 'whole' numbers, which are the natural numbers plus the
            zero value: 0, 1, 2, 3, 4, ...
enumeration integer
tooltip: Integer numbers

summary: Integer numbers


description: The number type for this attribute consists
            of the 'integer' numbers, which are the natural numbers, plus the
            zero value, plus the negatives of the natural numbers: ..., -4, -3,
            -2, -1, 0, 1, 2, 3, 4, ...
enumeration real
tooltip: Real numbers

summary: Real numbers


description: The number type for this attribute consists
            of the 'real' numbers, which contains both the rational numbers
            that can be expressed as fractions and the irrational numbers
            that can not be expressed as fractions (such as the square root of 2).
Used by
Source
<xs:simpleType name="NumberType">
  <xs:annotation>
    <xs:documentation>description: This is the enumeration for the allowed values of the element numberType.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="natural">
      <xs:annotation>
        <xs:documentation>tooltip: Natural numbers summary: Natural numbers description: The number type for this attribute consists of the 'natural' numbers, otherwise known as the counting numbers: 1, 2, 3, 4, ...</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="whole">
      <xs:annotation>
        <xs:documentation>tooltip: Whole numbers summary: Whole numbers description: The number type for this attribute consists of the 'whole' numbers, which are the natural numbers plus the zero value: 0, 1, 2, 3, 4, ...</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="integer">
      <xs:annotation>
        <xs:documentation>tooltip: Integer numbers summary: Integer numbers description: The number type for this attribute consists of the 'integer' numbers, which are the natural numbers, plus the zero value, plus the negatives of the natural numbers: ..., -4, -3, -2, -1, 0, 1, 2, 3, 4, ...</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="real">
      <xs:annotation>
        <xs:documentation>tooltip: Real numbers summary: Real numbers description: The number type for this attribute consists of the 'real' numbers, which contains both the rational numbers that can be expressed as fractions and the irrational numbers that can not be expressed as fractions (such as the square root of 2).</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-attribute.xsd
Complex Type DateTimeDomainType
Namespace eml://ecoinformatics.org/attribute-2.2.0
Annotations
tooltip: DateTime Domain

summary: DateTime domain of attribute specifying allowed
        values.

description: The DateTimeDomain specifies the
        minimum and maximum values of a dateTime attribute. These
        are theoretical or permitted values (ie. prescriptive), and
        not necessarily the actual minimum and maximum observed in
        a given data set (descriptive). The domain expressions should
        be in the same dateTime format as is used in the "formatString"
        description for the attribute.  For example, if the format
        string is "YYYY-MM-DD", then a valid minimum in the domain
        would be "2001-05-29".  The "bounds" element is optional, and
        if it is missing then any legitimate value from the Gregorian
        calendar system is allowed in the attribute as long as its
        representation matches its corresponding formatString.
Diagram
Diagram NO_NAMESPACE.tmp#DateTimeDomainType_id NO_NAMESPACE.tmp#BoundsDateGroup_bounds attribute-2_2_0.tmp#BoundsDateGroup NO_NAMESPACE.tmp#ReferencesGroup_references resource-2_2_0.tmp#ReferencesGroup
Used by
Model
Children bounds, references
Attributes
QName Type Use
id IDType optional
Source
<xs:complexType name="DateTimeDomainType">
  <xs:annotation>
    <xs:documentation>tooltip: DateTime Domain summary: DateTime domain of attribute specifying allowed values. description: The DateTimeDomain specifies the minimum and maximum values of a dateTime attribute. These are theoretical or permitted values (ie. prescriptive), and not necessarily the actual minimum and maximum observed in a given data set (descriptive). The domain expressions should be in the same dateTime format as is used in the "formatString" description for the attribute. For example, if the format string is "YYYY-MM-DD", then a valid minimum in the domain would be "2001-05-29". The "bounds" element is optional, and if it is missing then any legitimate value from the Gregorian calendar system is allowed in the attribute as long as its representation matches its corresponding formatString.</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:sequence>
      <xs:group ref="BoundsDateGroup"/>
    </xs:sequence>
    <xs:group ref="res:ReferencesGroup"/>
  </xs:choice>
  <xs:attribute name="id" type="res:IDType" use="optional"/>
</xs:complexType>
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-attribute.xsd
Complex Type Accuracy
Namespace eml://ecoinformatics.org/attribute-2.2.0
Diagram
Diagram NO_NAMESPACE.tmp#Accuracy_attributeAccuracyReport NO_NAMESPACE.tmp#Accuracy_quantitativeAttributeAccuracyAssessment
Used by
Model
Children attributeAccuracyReport, quantitativeAttributeAccuracyAssessment
Source
<xs:complexType name="Accuracy">
  <xs:sequence>
    <xs:element name="attributeAccuracyReport" type="res:NonEmptyStringType">
      <xs:annotation>
        <xs:documentation>tooltip: Attribute Accuracy Report summary: An explanatory report of the accuracy of the attribute. description: The attributeAccuracyReport element is an explanation of the accuracy of the observation recorded in this attribute. It will often include a description of the tests used to determine the accuracy of the observation. These reports are generally prepared for remote sensing or other measurement devices.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="quantitativeAttributeAccuracyAssessment" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>tooltip: Quantitative Attribute Accuracy Assessment summary: A value assigned to summarize the accuracy of the attribute. description: The quantitativeAttributeAccuracyAssessment element is composed of two parts, a value that represents the accuracy of the recorded observation an explanation of the tests used to determine the accuracy.</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="attributeAccuracyValue" type="res:NonEmptyStringType">
            <xs:annotation>
              <xs:documentation>tooltip: Attribute Accuracy Value summary: A value assigned to estimate the accuracy of the attribute. description: The attributeAccuracyValue element is an estimate of the accuracy of the identification of the entities and assignments of attribute values in the data set.</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="attributeAccuracyExplanation" type="res:NonEmptyStringType">
            <xs:annotation>
              <xs:documentation>tooltip: Attribute Accuracy Explanation summary: The test which yields the Attribute Accuracy Value. description: The attributeAccuracyExplanation element is the identification of the test that yielded the Attribute Accuracy Value.</xs:documentation>
            </xs:annotation>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-attribute.xsd
Element Group BoundsGroup
Namespace eml://ecoinformatics.org/attribute-2.2.0
Annotations
tooltip: Bounds

summary: Elements for specifying allowed
        values range.

description: The bounds element contains the
        minimum and maximum values of a numeric attribute. These
        are theoretical or permitted values (ie. prescriptive), and
        not necessarily the actual minimum and maximum observed in
        a given data set (descriptive).
Diagram
Diagram NO_NAMESPACE.tmp#BoundsGroup_bounds
Used by
Complex Type NumericDomainType
Model
Children bounds
Source
<xs:group name="BoundsGroup">
  <xs:annotation>
    <xs:documentation>tooltip: Bounds summary: Elements for specifying allowed values range. description: The bounds element contains the minimum and maximum values of a numeric attribute. These are theoretical or permitted values (ie. prescriptive), and not necessarily the actual minimum and maximum observed in a given data set (descriptive).</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="bounds" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>tooltip: Bounds summary: Elements for specifying allowed values range. description: The bounds element in the BoundsGroup contains the minimum and maximum values of a numeric attribute. These are theoretical or permitted values (ie. prescriptive), and not necessarily the actual minimum and maximum observed in a given data set (descriptive). Either or both a minimum and maximum may be set, and each has an attribute "exclusive" to define how the value should be interpreted.</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="minimum" minOccurs="0">
            <xs:annotation>
              <xs:documentation>tooltip: Minimum numeric bound summary: Minimum numeric bound of attribute description: The minimum element specifies the minimum permitted value of a numeric attribute.</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="xs:float">
                  <xs:attribute name="exclusive" type="xs:boolean" use="required">
                    <xs:annotation>
                      <xs:documentation>tooltip: Exclusive summary: Exclusive bounds flag description: If exclusive is set to true, then the value specifies a lower bound not including the value itself. Setting exclusive to true is the equivalent of using a less-than or greater-than operator, while setting it to false is the same as using a less-than-or-equals or greater-than-or-equals operator. For example, if the minimum is "5" and exclusive is false, then all values must be greater than or equal to 5, but if exclusive is true than all values must be greater than 5 (not including 5.0 itself).</xs:documentation>
                    </xs:annotation>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="maximum" minOccurs="0">
            <xs:annotation>
              <xs:documentation>tooltip: Maximum numeric bound summary: Maximum numeric bound of attribute description: The maximum element specifies the maximum permitted value of a numeric attribute.</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="xs:float">
                  <xs:attribute name="exclusive" type="xs:boolean" use="required">
                    <xs:annotation>
                      <xs:documentation>tooltip: Exclusive summary: Exclusive bounds flag description: If exclusive is set to true, then the value specifies a lower bound not including the value itself. Setting exclusive to true is the equivalent of using a less-than or greater-than operator, while setting it to false is the same as using a less-than-or-equals or greater-than-or-equals operator. For example, if the minimum is "5" and exclusive is false, then all values must be greater than or equal to 5, but if exclusive is true than all values must be greater than 5 (not including 5.0 itself).</xs:documentation>
                    </xs:annotation>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:group>
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-attribute.xsd
Element Group BoundsDateGroup
Namespace eml://ecoinformatics.org/attribute-2.2.0
Annotations
tooltip: BoundsDateGroup

summary: Elements for specifying allowed
        value ranges.

description: The BoundsDateGroup specifies the
        minimum and maximum dates allowed for a dateTime attribute. These
        are theoretical or permitted values (ie. prescriptive), and
        not necessarily the actual minimum and maximum observed in
        a given data set (descriptive). The domain expressions should
        be in the same dateTime format as is used in the attribute's "formatString".
        For example, if the format
        string is "YYYY-MM-DD", then a valid minimum in the domain
        would be "2001-05-29".  The "bounds" element is optional, and
        if it is missing then any legitimate value from the Gregorian
        calendar system is allowed in the attribute as long as its
        representation matches its corresponding formatString.
Diagram
Diagram NO_NAMESPACE.tmp#BoundsDateGroup_bounds
Used by
Complex Type DateTimeDomainType
Model
Children bounds
Source
<xs:group name="BoundsDateGroup">
  <xs:annotation>
    <xs:documentation>tooltip: BoundsDateGroup summary: Elements for specifying allowed value ranges. description: The BoundsDateGroup specifies the minimum and maximum dates allowed for a dateTime attribute. These are theoretical or permitted values (ie. prescriptive), and not necessarily the actual minimum and maximum observed in a given data set (descriptive). The domain expressions should be in the same dateTime format as is used in the attribute's "formatString". For example, if the format string is "YYYY-MM-DD", then a valid minimum in the domain would be "2001-05-29". The "bounds" element is optional, and if it is missing then any legitimate value from the Gregorian calendar system is allowed in the attribute as long as its representation matches its corresponding formatString.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="bounds" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>tooltip: Bounds summary: Elements for specifying allowed date range. description: The bounds element in the BoundsDateGroup contains the minimum and maximum dates of a dateTime attribute. These are theoretical or permitted values (ie. prescriptive), and not necessarily the actual minimum and maximum observed in a given data set (descriptive). Either or both a minimum and maximum may be set, and each has an attribute "exclusive" to define how the value should be interpreted.</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="minimum" minOccurs="0">
            <xs:annotation>
              <xs:documentation>tooltip: Minimum date bound summary: Minimum date bound of attribute description: The minimum element specifies the minimum permitted value of a date attribute.</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="xs:string">
                  <xs:attribute name="exclusive" type="xs:boolean" use="required">
                    <xs:annotation>
                      <xs:documentation>tooltip: Exclusive summary: Exclusive bounds flag description: If exclusive is set to true, then the value specifies a lower bound not including the value itself. Setting exclusive to true is the equivalent of using a less-than or greater-than operator, while setting it to false is the same as using a less-than-or-equals or greater-than-or-equals operator. For example, if the minimum is "5" and exclusive is false, then all values must be greater than or equal to 5, but if exclusive is true than all values must be greater than 5 (not including 5.0 itself).</xs:documentation>
                    </xs:annotation>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="maximum" minOccurs="0">
            <xs:annotation>
              <xs:documentation>tooltip: Maximum date bound summary: Maximum date bound of attribute description: The maximum element specifies the maximum permitted value of a date attribute.</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="xs:string">
                  <xs:attribute name="exclusive" type="xs:boolean" use="required">
                    <xs:annotation>
                      <xs:documentation>tooltip: Exclusive summary: Exclusive bounds flag description: If exclusive is set to true, then the value specifies a lower bound not including the value itself. Setting exclusive to true is the equivalent of using a less-than or greater-than operator, while setting it to false is the same as using a less-than-or-equals or greater-than-or-equals operator. For example, if the minimum is "5" and exclusive is false, then all values must be greater than or equal to 5, but if exclusive is true than all values must be greater than 5 (not including 5.0 itself).</xs:documentation>
                    </xs:annotation>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:group>
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-attribute.xsd
