Imported schema eml-dataTable.xsd
Namespace eml://ecoinformatics.org/dataTable-2.2.0
Annotations

'$RCSfile: eml-dataTable.xsd,v $'
       Copyright: 1997-2002 Regents of the University of California,
                            University of New Mexico, and
                            Arizona State University
        Sponsors: National Center for Ecological Analysis and Synthesis and
                  Partnership for Interdisciplinary Studies of Coastal Oceans,
                     University of California Santa Barbara
                  Long-Term Ecological Research Network Office,
                     University of New Mexico
                  Center for Environmental Studies, Arizona State University
   Other funding: National Science Foundation (see README for details)
                  The David and Lucile Packard Foundation
     For Details: http://knb.ecoinformatics.org/

        '$Author: obrien $'
          '$Date: 2009-02-25 23:51:54 $'
      '$Revision: 1.47 $'
    This program is free software; you can redistribute it and/or modify
    it under the terms of the GNU General Public License as published by
    the Free Software Foundation; either version 2 of the License, or
    (at your option) any later version.
    This program is distributed in the hope that it will be useful,
    but WITHOUT ANY WARRANTY; without even the implied warranty of
    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
    GNU General Public License for more details.
    You should have received a copy of the GNU General Public License
    along with this program; if not, write to the Free Software
    Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA  02111-1307  USA

moduleName: eml-dataTable

moduleDescription:


            The eml-dataTable module - Logical information
            about data table entities




recommendedUsage: The EML dataTable Module is used to document
        datasets with one or more data tables.

standAlone: yes
Properties
attribute form default unqualified
element form default unqualified
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-dataTable.xsd
Element dataTable
Namespace eml://ecoinformatics.org/dataTable-2.2.0
Annotations

tooltip: Table Entity descriptor

summary: Descriptor of one table entity in the
        dataset.

description: The dataTable element is a descriptor of one entity in
        the dataset identified by its name. This element can contain
        information about the dataTable's orientation, number of records, case
        sensitivity, and temporal, geographic and taxonomic coverage. Because
        the dataTable element refers to the complex type 'DataTableType', it
        must contain all the elements defined for the type.
        description for DataTableType to review component element
        rules.
Diagram
Diagram NO_NAMESPACE.tmp#DataTableType_id NO_NAMESPACE.tmp#DataTableType_system NO_NAMESPACE.tmp#DataTableType_scope NO_NAMESPACE.tmp#EntityGroup_alternateIdentifier NO_NAMESPACE.tmp#EntityGroup_entityName NO_NAMESPACE.tmp#EntityGroup_entityDescription NO_NAMESPACE.tmp#EntityGroup_physical NO_NAMESPACE.tmp#EntityGroup_coverage NO_NAMESPACE.tmp#EntityGroup_methods NO_NAMESPACE.tmp#EntityGroup_additionalInfo NO_NAMESPACE.tmp#EntityGroup_annotation entity-2_2_0.tmp#EntityGroup NO_NAMESPACE.tmp#DataTableType_attributeList NO_NAMESPACE.tmp#DataTableType_constraint NO_NAMESPACE.tmp#DataTableType_caseSensitive NO_NAMESPACE.tmp#DataTableType_numberOfRecords NO_NAMESPACE.tmp#ReferencesGroup_references resource-2_2_0.tmp#ReferencesGroup dataTable-2_2_0.tmp#DataTableType
Type DataTableType
Properties
content complex
Model
Children additionalInfo, alternateIdentifier, annotation, attributeList, caseSensitive, constraint, coverage, entityDescription, entityName, methods, numberOfRecords, physical, references
Instance

<dataTable id="" scope="document" system="" xmlns="eml://ecoinformatics.org/dataTable-2.2.0">
  <alternateIdentifier system="">{0,unbounded}</alternateIdentifier>
  <entityName>{1,1}</entityName>
  <entityDescription>{0,1}</entityDescription>
  <physical id="" scope="document" system="">{0,unbounded}</physical>
  <coverage id="" scope="document" system="">{0,1}</coverage>
  <methods>{0,1}</methods>
  <additionalInfo xml:lang="">{0,unbounded}</additionalInfo>
  <annotation>{0,unbounded}</annotation>
  <attributeList id="">{1,1}</attributeList>
  <constraint id="" scope="document" system="">{0,unbounded}</constraint>
  <caseSensitive>{0,1}</caseSensitive>
  <numberOfRecords>{0,1}</numberOfRecords>
  <references system="">{1,1}</references>
</dataTable>
Attributes
QName Type Default Use
id IDType optional
scope ScopeType document optional
system SystemType optional
Source

<xs:element name="dataTable" type="DataTableType">
  <xs:annotation>
    <xs:documentation>tooltip: Table Entity descriptor summary: Descriptor of one table entity in the dataset. description: The dataTable element is a descriptor of one entity in the dataset identified by its name. This element can contain information about the dataTable's orientation, number of records, case sensitivity, and temporal, geographic and taxonomic coverage. Because the dataTable element refers to the complex type 'DataTableType', it must contain all the elements defined for the type. description for DataTableType to review component element rules.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-dataTable.xsd
Complex Type DataTableType
Namespace eml://ecoinformatics.org/dataTable-2.2.0

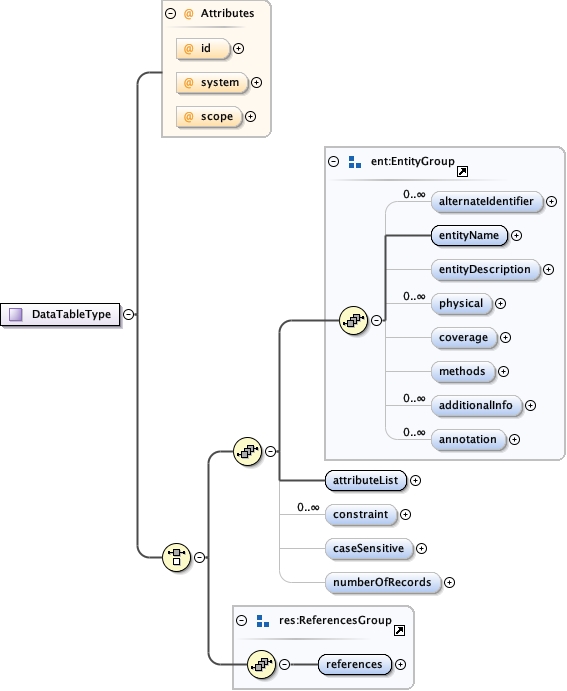

Diagram
Diagram NO_NAMESPACE.tmp#DataTableType_id NO_NAMESPACE.tmp#DataTableType_system NO_NAMESPACE.tmp#DataTableType_scope NO_NAMESPACE.tmp#EntityGroup_alternateIdentifier NO_NAMESPACE.tmp#EntityGroup_entityName NO_NAMESPACE.tmp#EntityGroup_entityDescription NO_NAMESPACE.tmp#EntityGroup_physical NO_NAMESPACE.tmp#EntityGroup_coverage NO_NAMESPACE.tmp#EntityGroup_methods NO_NAMESPACE.tmp#EntityGroup_additionalInfo NO_NAMESPACE.tmp#EntityGroup_annotation entity-2_2_0.tmp#EntityGroup NO_NAMESPACE.tmp#DataTableType_attributeList NO_NAMESPACE.tmp#DataTableType_constraint NO_NAMESPACE.tmp#DataTableType_caseSensitive NO_NAMESPACE.tmp#DataTableType_numberOfRecords NO_NAMESPACE.tmp#ReferencesGroup_references resource-2_2_0.tmp#ReferencesGroup
Used by
Model
Children additionalInfo, alternateIdentifier, annotation, attributeList, caseSensitive, constraint, coverage, entityDescription, entityName, methods, numberOfRecords, physical, references
Attributes
QName Type Default Use
id IDType optional
scope ScopeType document optional
system SystemType optional
Source

<xs:complexType name="DataTableType">
  <xs:choice>
    <xs:sequence>
      <xs:group ref="ent:EntityGroup"/>
      <xs:element name="attributeList" type="att:AttributeListType">
        <xs:annotation>
          <xs:documentation>tooltip: Attribute List summary: The list of attributes associated with this entity. description: The list of attributes associated with this entity. For more information see the eml-attribute module.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="constraint" type="con:ConstraintType" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>tooltip: Constraint summary: description: Description of any relational constraints on ' this entity. For more information see the eml-constraint module.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="caseSensitive" minOccurs="0">
        <xs:annotation>
          <xs:documentation>tooltip: Case sensitivity summary: Specification of text case sensitivity in the dataTable. description: The caseSensitive element specifies text case sensitivity of the data in the dataTable. The valid values are yes or no. If it is set to yes, then values of attributes that differ only in case (e.g., LOW, low) represent distinct values. If set to no, then values of attributes that differ only in case represent the same value.</xs:documentation>
        </xs:annotation>
        <xs:simpleType>
          <xs:restriction base="xs:string">
            <xs:enumeration value="yes"/>
            <xs:enumeration value="no"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="numberOfRecords" type="res:NonEmptyStringType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>tooltip: Number of records summary: The integer count of the number of records in the dataTable. description: The numberOfRecords element contains a count of the number of records in the dataTable. This is typically an integer value, and only includes records that represent observations. It would not include any details of physical formatting such as the number of header lines (see eml-physical for that information).</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
    <xs:group ref="res:ReferencesGroup"/>
  </xs:choice>
  <xs:attribute name="id" type="res:IDType" use="optional"/>
  <xs:attribute name="system" type="res:SystemType" use="optional"/>
  <xs:attribute name="scope" type="res:ScopeType" use="optional" default="document"/>
</xs:complexType>
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-dataTable.xsd
