Schema documentation for namespace eml://ecoinformatics.org/literature-2.2.0

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Imported schema eml-literature.xsd

Namespace

eml://ecoinformatics.org/literature-2.2.0

Annotations

'$RCSfile: eml-literature.xsd,v $'
       Copyright: 1997-2002 Regents of the University of California,
                            University of New Mexico, and
                            Arizona State University
        Sponsors: National Center for Ecological Analysis and Synthesis and
                  Partnership for Interdisciplinary Studies of Coastal Oceans,
                     University of California Santa Barbara
                  Long-Term Ecological Research Network Office,
                     University of New Mexico
                  Center for Environmental Studies, Arizona State University
   Other funding: National Science Foundation (see README for details)
                  The David and Lucile Packard Foundation
     For Details: http://knb.ecoinformatics.org/

        '$Author: obrien $'
          '$Date: 2009-02-25 23:51:54 $'
      '$Revision: 1.61 $'

    This program is free software; you can redistribute it and/or modify
    it under the terms of the GNU General Public License as published by
    the Free Software Foundation; either version 2 of the License, or
    (at your option) any later version.

    This program is distributed in the hope that it will be useful,
    but WITHOUT ANY WARRANTY; without even the implied warranty of
    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
    GNU General Public License for more details.

    You should have received a copy of the GNU General Public License
    along with this program; if not, write to the Free Software
    Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA  02111-1307  USA

moduleName: eml-literature

moduleDescription:


              The eml-literature module - Citation specific
              information




recommendedUsage: All datasets with literary
        citations

standAlone: yes

Properties

attribute form default	unqualified
element form default	unqualified

Schema location

file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-literature.xsd

Element citation

Namespace

eml://ecoinformatics.org/literature-2.2.0

Annotations

tooltip: Literature Citation

summary: Information describing a literature
        resource.

description: The citation element contains general information
        about a literature resource that is being documented, or a piece of
        literature that is being cited in support of a given resource, such as
        a dataset. It contains sub-elements that are specific to a literature
        resource such as a book, a journal article, a thesis, etc. It extends
        the generic resource elements with literature specific
        fields.

Diagram

Type

CitationType

Properties

content

complex

Model

(alternateIdentifier* , shortName{0,1} , title+ , creator+ , metadataProvider* , associatedParty* , pubDate{0,1} , language{0,1} , series{0,1} , abstract{0,1} , keywordSet* , additionalInfo* , intellectualRights{0,1} , licensed* , distribution* , coverage{0,1} , annotation* , contact* , (article | book | chapter | editedBook | manuscript | report | thesis | conferenceProceedings | personalCommunication | map | generic | audioVisual | presentation)) | bibtex | (references)

Children

abstract, additionalInfo, alternateIdentifier, annotation, article, associatedParty, audioVisual, bibtex, book, chapter, conferenceProceedings, contact, coverage, creator, distribution, editedBook, generic, intellectualRights, keywordSet, language, licensed, manuscript, map, metadataProvider, personalCommunication, presentation, pubDate, references, report, series, shortName, thesis, title

Instance

<citation id="" scope="document" system="" xmlns="eml://ecoinformatics.org/literature-2.2.0">
  <alternateIdentifier system="">{0,unbounded}</alternateIdentifier>
  <shortName>{0,1}</shortName>
  <title xml:lang="">{1,unbounded}</title>
  <creator id="" scope="document" system="">{1,unbounded}</creator>
  <metadataProvider id="" scope="document" system="">{0,unbounded}</metadataProvider>
  <associatedParty id="" scope="document" system="">{0,unbounded}</associatedParty>
  <pubDate>{0,1}</pubDate>
  <language xml:lang="">{0,1}</language>
  <series>{0,1}</series>
  <abstract xml:lang="">{0,1}</abstract>
  <keywordSet>{0,unbounded}</keywordSet>
  <additionalInfo xml:lang="">{0,unbounded}</additionalInfo>
  <intellectualRights xml:lang="">{0,1}</intellectualRights>
  <licensed>{0,unbounded}</licensed>
  <distribution id="" scope="document" system="">{0,unbounded}</distribution>
  <coverage id="" scope="document" system="">{0,1}</coverage>
  <annotation>{0,unbounded}</annotation>
  <contact id="" scope="document" system="">{0,unbounded}</contact>
  <article>{1,1}</article>
  <book>{1,1}</book>
  <chapter>{1,1}</chapter>
  <editedBook>{1,1}</editedBook>
  <manuscript>{1,1}</manuscript>
  <report>{1,1}</report>
  <thesis>{1,1}</thesis>
  <conferenceProceedings>{1,1}</conferenceProceedings>
  <personalCommunication>{1,1}</personalCommunication>
  <map>{1,1}</map>
  <generic>{1,1}</generic>
  <audioVisual>{1,1}</audioVisual>
  <presentation>{1,1}</presentation>
  <bibtex>{1,1}</bibtex>
  <references system="">{1,1}</references>
</citation>

Attributes

QName	Type	Default	Use
id	IDType		optional
scope	ScopeType	document	optional
system	SystemType		optional

Source

<xs:element name="citation" type="CitationType">
  <xs:annotation>
    <xs:documentation>tooltip: Literature Citation summary: Information describing a literature resource. description: The citation element contains general information about a literature resource that is being documented, or a piece of literature that is being cited in support of a given resource, such as a dataset. It contains sub-elements that are specific to a literature resource such as a book, a journal article, a thesis, etc. It extends the generic resource elements with literature specific fields.</xs:documentation>
  </xs:annotation>
</xs:element>

Schema location

file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-literature.xsd

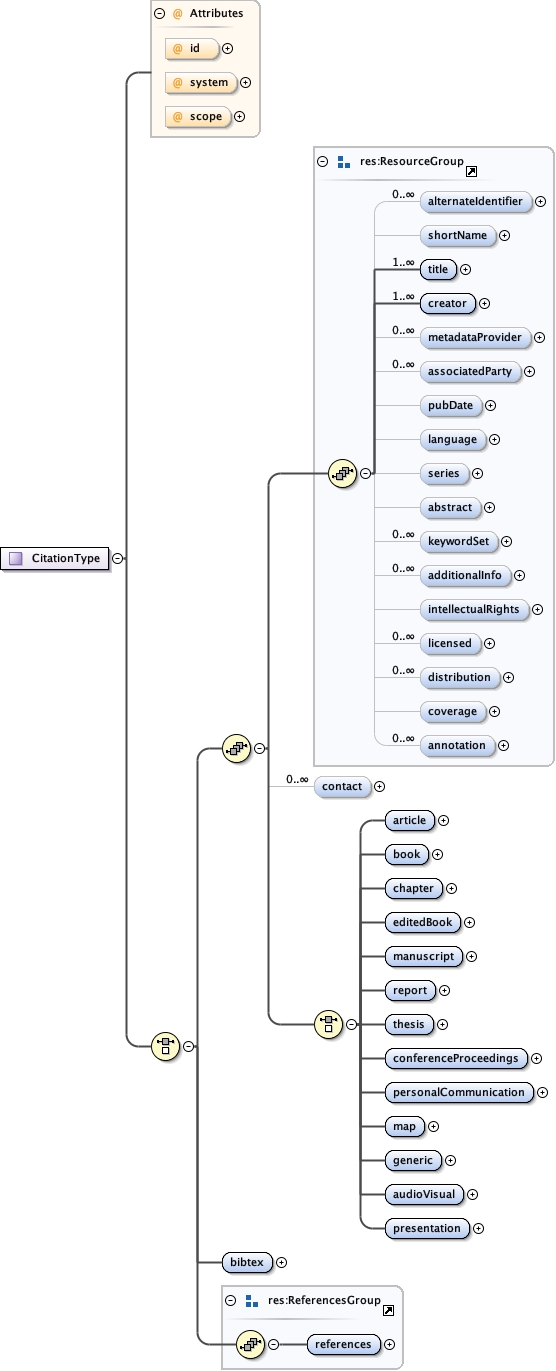

Complex Type CitationType

Namespace

eml://ecoinformatics.org/literature-2.2.0

Diagram

Used by

Elements

CitationListType/citation, DatasetType/referencePublication, DatasetType/usageCitation, MethodsType/sampling/citation, NonNumericDomainType/enumeratedDomain/externalCodeSet/citation, PhysicalType/dataFormat/externallyDefinedFormat/citation, ProcedureStepType/citation, ResearchProjectType/designDescription/citation, ResearchProjectType/studyAreaDescription/citation, ResearchProjectType/studyAreaDescription/descriptor/citation, SingleDateTimeType/alternativeTimeScale/timeScaleCitation, TaxonomicCoverage/taxonomicSystem/classificationSystem/classificationSystemCitation, TaxonomicCoverage/taxonomicSystem/identificationReference, citation, eml/citation

Model

Children

Attributes

QName	Type	Default	Use
id	IDType		optional
scope	ScopeType	document	optional
system	SystemType		optional

Source

<xs:complexType name="CitationType">
  <xs:choice>
    <xs:sequence>
      <xs:group ref="res:ResourceGroup"/>
      <xs:element name="contact" type="rp:ResponsibleParty" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>tooltip: Contact summary: An optional contact individual for this citation description: The contact field contains information about an alternate person to be contacted about this citation. Usually, the first author serves as the contact for a citation resource, e.g., a reprint request. In some cases, an alternate individual(s) may serve that function, and can be indicated here. Since contact is of the type rp:ResponsibleParty, a reference may be used.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:choice>
        <xs:element name="article" type="Article">
          <xs:annotation>
            <xs:documentation>tooltip: article summary: Information for full citation of a journal article or other periodical article. description: The article field provides sub-fields for a full citation of an article in a journal or other periodical.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="book" type="Book">
          <xs:annotation>
            <xs:documentation>tooltip: Book summary: Information for full citation of a book description: The book field provides sub-fields for a full citation of a book.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="chapter" type="Chapter">
          <xs:annotation>
            <xs:documentation>tooltip: Book Chapter summary: Information for citation of a chapter in a book description: The book chapter allows citation of a single chapter or section of a book. The "creator" for a book chapter are the chapter's authors, while the "editor" is the book editors. Likewise, "title" is the chapter title, while "bookTitle" is the title of the whole book.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="editedBook" type="Book">
          <xs:annotation>
            <xs:documentation>tooltip: Book summary: Information for full citation of an edited book description: The edited book represents a book which was edited by one or more editors, but whose chapters were possibly authored by others. The editors of an edited book should be listed in the "creator" field.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="manuscript" type="Manuscript">
          <xs:annotation>
            <xs:documentation>tooltip: unpublished manuscipt summary: Information about an unpublished manuscript description: The manuscript field provides sub-fields for a full citation of an unpublished manuscript.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="report" type="Report">
          <xs:annotation>
            <xs:documentation>tooltip: Report summary: Information about a report published by an institution. description: The report may be self published by the institution or through a publisher. They usually are available by request to the institution or can be purchased from the publisher.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="thesis" type="Thesis">
          <xs:annotation>
            <xs:documentation>tooltip: Thesis as part of a degree summary: Information about a thesis that has been written as part of a degree requirement and is frequently published in small numbers by the degree awarding institution. description: Information about a thesis that has been written as part of a degree requirement and is frequently published in small numbers by the degree awarding institution.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="conferenceProceedings" type="ConferenceProceedings">
          <xs:annotation>
            <xs:documentation>tooltip: conference proceedings summary: The published notes, papers, presentations etc... of a conference. description: The published notes, papers, presentations, etc..., of a conference.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="personalCommunication" type="PersonalCommunication">
          <xs:annotation>
            <xs:documentation>tooltip: Personal communication summary: A personal communication that has been saved online or as hard-copy. description: This could be a widely distributed memo, an e-mail, a transcript from a conversation or interview, etc...</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="map" type="Map">
          <xs:annotation>
            <xs:documentation>tooltip: map summary: This element describes the map that is being cited or cataloged. description: This element describes the map that is being cited or cataloged, including its geographic coverage and scale.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="generic" type="Generic">
          <xs:annotation>
            <xs:documentation>tooltip: Generic Citation summary: This reference type was created for references that do not fit in to the other existing reference types description: This reference type was created for references that do not fit in to the other existing reference types.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="audioVisual" type="AudioVisual">
          <xs:annotation>
            <xs:documentation>tooltip: audio visual summary: This reference type is meant to cover all forms of audio and visual media. description: This reference type is meant to cover all forms of audio and visual media, including film, video, broadcast, other electronic media.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="presentation" type="Presentation">
          <xs:annotation>
            <xs:documentation>tooltip: Unpublished Presentation summary: An unpublished presentation from a conference, workshop, workgroup, symposium etc. description: An unpublished presentation from a conference, workshop, workgroup, symposium, etc. It will be provided upon request in either in paper and/or electronic form. If the presentation was actually published in a proceedings, use the conferenceProceedings type instead.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:choice>
    </xs:sequence>
    <xs:element name="bibtex" type="xs:string">
      <xs:annotation>
        <xs:documentation>tooltip: Bibtex Citation summary: Citation in Bibtex format. description: The bibtex field provides a parseable citation formatted according to the Bibtex formatting conventions. The citation entry is assigned a unique key that must be unique across all bibtex fields in the EML document. The citation key can be used in markdown sections of the text to refer to this citation using the pandoc-style of inline citation keys. See the markdown element for more details. The record is delimited using curly braces. Most reference software can both import and export citations in Bibtex format, so this is a simpler representation to produce and consume than native EML citation representations.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:group ref="res:ReferencesGroup"/>
  </xs:choice>
  <xs:attribute name="id" type="res:IDType" use="optional"/>
  <xs:attribute name="system" type="res:SystemType" use="optional"/>
  <xs:attribute name="scope" type="res:ScopeType" use="optional" default="document"/>
</xs:complexType>

Schema location

file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-literature.xsd

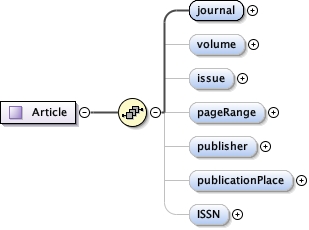

Complex Type Article

Namespace

eml://ecoinformatics.org/literature-2.2.0

Annotations

tooltip: article

summary: Information for full citation of a journal article or
        other periodical article.

description: The article field provides sub-fields for a full
        citation of an article in a journal or other
        periodical.

Diagram

Used by

Element

CitationType/article

Model

journal , volume{0,1} , issue{0,1} , pageRange{0,1} , publisher{0,1} , publicationPlace{0,1} , ISSN{0,1}

Children

ISSN, issue, journal, pageRange, publicationPlace, publisher, volume

Source

<xs:complexType name="Article">
  <xs:annotation>
    <xs:documentation>tooltip: article summary: Information for full citation of a journal article or other periodical article. description: The article field provides sub-fields for a full citation of an article in a journal or other periodical.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="journal" type="res:NonEmptyStringType">
      <xs:annotation>
        <xs:documentation>tooltip: Journal Name summary: The name of the journal, magazine, newspaper, zine, etc... in which the article was published. description: The name of the journal, magazine, newspaper, zine, etc... in which the article was published.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="volume" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Journal Volume summary: The volume of the journal in which the article appears description: The volume field is used to describe the volume of the journal in which the article appears.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="issue" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Journal issue summary: The issue of the journal in which the article appears description: The issue field is used to describe the issue of the journal in which the article appears.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="pageRange" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Journal Pages summary: The beginning and end page numbers of the journal article description: The page range field is used for the beginning and ending pages of the journal article that is being documented.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="publisher" type="rp:ResponsibleParty" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Publisher summary: Organization that actually publishes the article description: The organization that physically puts together the article and publishes it.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="publicationPlace" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Publication Place summary: The location at which the work was published. description: The location at which the work was published. This is usually the name of the city in which the publishing house produced the work.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ISSN" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: International Standard Serial Number summary: The unique Internation Standard Serial Number description: The ISSN, or International Standard Serial Number that has been assigned to this literature resource.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-literature.xsd

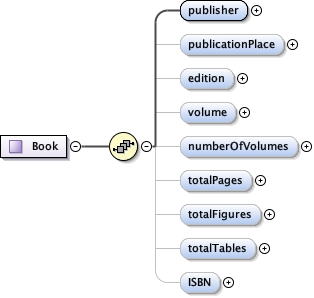

Complex Type Book

Namespace

eml://ecoinformatics.org/literature-2.2.0

Annotations

tooltip: Book

summary: Information for full citation of a book

description: The book field provides sub-fields for a full citation
        of a book.

Diagram

Used by

Elements	CitationType/book, CitationType/editedBook
Complex Type	Chapter

Model

publisher , publicationPlace{0,1} , edition{0,1} , volume{0,1} , numberOfVolumes{0,1} , totalPages{0,1} , totalFigures{0,1} , totalTables{0,1} , ISBN{0,1}

Children

ISBN, edition, numberOfVolumes, publicationPlace, publisher, totalFigures, totalPages, totalTables, volume

Source

<xs:complexType name="Book">
  <xs:annotation>
    <xs:documentation>tooltip: Book summary: Information for full citation of a book description: The book field provides sub-fields for a full citation of a book.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="publisher" type="rp:ResponsibleParty">
      <xs:annotation>
        <xs:documentation>tooltip: Publisher summary: Organization that actually publishes the book description: The organization that physically puts together the book and publishes it.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="publicationPlace" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Publication Place summary: The location at which the work was published. description: The location at which the work was published. This is usually the name of the city in which the publishing house produced the work.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="edition" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Book edition summary: The edition of the book being described. description: The edition field is to document the edition of the book that is being described.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="volume" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Book volume summary: The volume of the book that is part of a series. description: The volume field is used to describe the volume number of a book that is part of a multi-volume series of books.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="numberOfVolumes" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Number of Volumes summary: Number of volumes in a collection description: Number of volumes in a collection</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="totalPages" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Total book pages summary: The total number of pages in the book. description: The total pages field is used to describe the total number of pages in the book that is being described.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="totalFigures" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Number of figures in book summary: The total number of figures in the book. description: the total figures field is used to describe the total number of figures, diagrams, and plates in the book that is being documented.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="totalTables" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Number of tables in book summary: The total number of tables in a book. description: The total tables field is used to describe the total number of tables that are present in the book that is being documented.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ISBN" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: International Standard Book Number summary: The unique Internation Standard Book Number description: The ISBN, or International Standard Book Number that has been assigned to this literature resource.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-literature.xsd

Complex Type Chapter

Namespace

eml://ecoinformatics.org/literature-2.2.0

Annotations

tooltip: Book Chapter

summary: Information for citation of a chapter in a
        book

description: The book chapter allows citation of a single chapter
        or section of a book. The "creator" for a book chapter are the
        chapter's authors, while the "editor" is the book editors. Likewise,
        "title" is the chapter title, while "bookTitle" is the title of the
        whole book.

Diagram

Type

extension of Book

Type hierarchy

Book
- Chapter

Used by

Element	CitationType/chapter
Complex Type	ConferenceProceedings

Model

publisher , publicationPlace{0,1} , edition{0,1} , volume{0,1} , numberOfVolumes{0,1} , totalPages{0,1} , totalFigures{0,1} , totalTables{0,1} , ISBN{0,1} , chapterNumber{0,1} , editor+ , bookTitle , pageRange{0,1}

Children

ISBN, bookTitle, chapterNumber, edition, editor, numberOfVolumes, pageRange, publicationPlace, publisher, totalFigures, totalPages, totalTables, volume

Source

<xs:complexType name="Chapter">
  <xs:annotation>
    <xs:documentation>tooltip: Book Chapter summary: Information for citation of a chapter in a book description: The book chapter allows citation of a single chapter or section of a book. The "creator" for a book chapter are the chapter's authors, while the "editor" is the book editors. Likewise, "title" is the chapter title, while "bookTitle" is the title of the whole book.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="Book">
      <xs:sequence>
        <xs:element name="chapterNumber" type="res:NonEmptyStringType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>tooltip: Chapter number summary: The chapter number of interest within a book description: The chapter number of the chapter of a book that is being described.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="editor" type="rp:ResponsibleParty" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>tooltip: Book editor summary: The name of the editor of the book. description: The book editor field is used to document the name of the editor of the book that is being described. The editor may be a person, organization, or a role within an organization.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="bookTitle" type="res:NonEmptyStringType">
          <xs:annotation>
            <xs:documentation>tooltip: Book title summary: The title of the book. description: The book title field is used to document the title of the book that is being described.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="pageRange" type="res:NonEmptyStringType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>tooltip: Chapter page range summary: The beginning and ending page numbers of a chapter. description: The page range field is used to document the beginning and ending pages of a chapter in a book.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

Schema location

file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-literature.xsd

Complex Type Manuscript

Namespace

eml://ecoinformatics.org/literature-2.2.0

Annotations

tooltip: unpublished manuscipt

summary: Information about an unpublished manuscript

description: The manuscript field provides sub-fields for a full
        citation of an unpublished manuscript.

Diagram

Used by

Element

CitationType/manuscript

Model

institution+ , totalPages{0,1}

Children

institution, totalPages

Source

<xs:complexType name="Manuscript">
  <xs:annotation>
    <xs:documentation>tooltip: unpublished manuscipt summary: Information about an unpublished manuscript description: The manuscript field provides sub-fields for a full citation of an unpublished manuscript.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="institution" type="rp:ResponsibleParty" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>tooltip: Manuscript publication information summary: The address and contact information needed to request a manuscript. description: The institution information field is used to provide contact and address information that would be needed to request an unpublished manuscript</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="totalPages" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Total manuscript pages summary: The total number of pages in the manuscript. description: The total pages field is used to describe the total number of pages in the manuscript that is being described.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-literature.xsd

Complex Type Report

Namespace

eml://ecoinformatics.org/literature-2.2.0

Annotations

tooltip: Report

summary: Information about a report published by an
        institution.

description: The report may be self published by the institution or
        through a publisher. They usually are available by request to the
        institution or can be purchased from the publisher.

Diagram

Used by

Element

CitationType/report

Model

reportNumber{0,1} , publisher{0,1} , publicationPlace{0,1} , totalPages{0,1}

Children

publicationPlace, publisher, reportNumber, totalPages

Source

<xs:complexType name="Report">
  <xs:annotation>
    <xs:documentation>tooltip: Report summary: Information about a report published by an institution. description: The report may be self published by the institution or through a publisher. They usually are available by request to the institution or can be purchased from the publisher.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="reportNumber" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Report Number summary: The unique identification number assigned to the report. description: The report number field is used to describe the unique identification number that has been issued by the report institution for the report being described.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="publisher" type="rp:ResponsibleParty" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Publisher summary: Organization that actually publishes the report description: The organization that physically put together the report and publishes it.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="publicationPlace" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Publication Place summary: The location at which the work was published. description: The location at which the work was published. This is usually the name of the city in which the publishing house produced the work.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="totalPages" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Total report pages summary: The total number of pages in the report. description: The total pages field is used to describe the total number of pages in the report that is being described.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-literature.xsd

Complex Type Thesis

Namespace

eml://ecoinformatics.org/literature-2.2.0

Annotations

tooltip: Thesis as part of a degree

summary: Information about a thesis that has been written as part
        of a degree requirement and is frequently published in small numbers by
        the degree awarding institution.

description: Information about a thesis that has been written as
        part of a degree requirement and is frequently published in small
        numbers by the degree awarding institution.

Diagram

Used by

Element

CitationType/thesis

Model

degree , institution , totalPages{0,1}

Children

degree, institution, totalPages

Source

<xs:complexType name="Thesis">
  <xs:annotation>
    <xs:documentation>tooltip: Thesis as part of a degree summary: Information about a thesis that has been written as part of a degree requirement and is frequently published in small numbers by the degree awarding institution. description: Information about a thesis that has been written as part of a degree requirement and is frequently published in small numbers by the degree awarding institution.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="degree" type="res:NonEmptyStringType">
      <xs:annotation>
        <xs:documentation>tooltip: Degee name summary: The name or degree level for which the thesis was completed. description: The degree field is used to describe the name or degree level for which the thesis was completed.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="institution" type="rp:ResponsibleParty">
      <xs:annotation>
        <xs:documentation>tooltip: Degree awarding institution summary: The name of the degree-awarding institution description: The degree institution field is used to name the institution from which the degree was awarded for the thesis being described.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="totalPages" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Thesis Pages summary: The total number of pages in the thesis. description: The total pages field is used to document the number of pages that are present in the thesis that is being described.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-literature.xsd

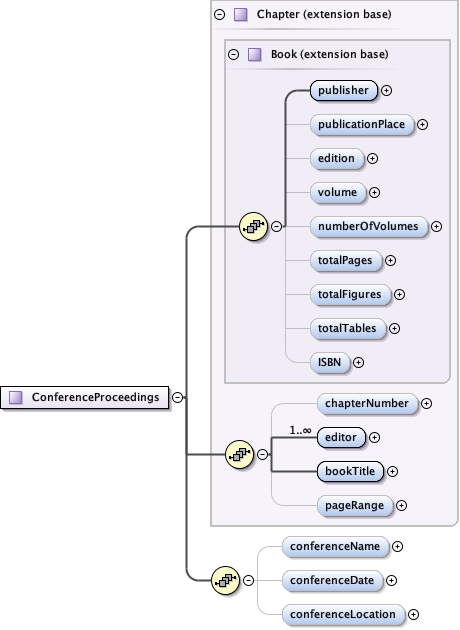

Complex Type ConferenceProceedings

Namespace

eml://ecoinformatics.org/literature-2.2.0

Annotations

tooltip: conference proceedings

summary: The published notes, papers, presentations etc... of a
        conference.

description: The published notes, papers, presentations, etc..., of
        a conference.

Diagram

Type

extension of Chapter

Type hierarchy

Book
- Chapter
  - ConferenceProceedings

Used by

Element

CitationType/conferenceProceedings

Model

Children

ISBN, bookTitle, chapterNumber, conferenceDate, conferenceLocation, conferenceName, edition, editor, numberOfVolumes, pageRange, publicationPlace, publisher, totalFigures, totalPages, totalTables, volume

Source

<xs:complexType name="ConferenceProceedings">
  <xs:annotation>
    <xs:documentation>tooltip: conference proceedings summary: The published notes, papers, presentations etc... of a conference. description: The published notes, papers, presentations, etc..., of a conference.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="Chapter">
      <xs:sequence>
        <xs:element name="conferenceName" type="res:NonEmptyStringType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>tooltip: Conference Name summary: The name of the conference whose proceedings have been published. description: The name of the conference whose proceedings have been published.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="conferenceDate" type="res:NonEmptyStringType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>tooltip: Conference Date summary: The date the conference was held. description: The date the conference was held.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="conferenceLocation" type="rp:Address" minOccurs="0">
          <xs:annotation>
            <xs:documentation>tooltip: Conference Location summary: The location where the conference was held. description: The location where the conference was held.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

Schema location

file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-literature.xsd

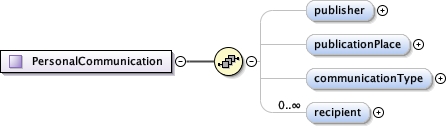

Complex Type PersonalCommunication

Namespace

eml://ecoinformatics.org/literature-2.2.0

Annotations

tooltip: Personal communication

summary: A personal communication that has been saved online or as
        hard-copy.

description: This could be a widely distributed memo, an e-mail, a
        transcript from a conversation or interview, etc...

Diagram

Used by

Element

CitationType/personalCommunication

Model

publisher{0,1} , publicationPlace{0,1} , communicationType{0,1} , recipient*

Children

communicationType, publicationPlace, publisher, recipient

Source

<xs:complexType name="PersonalCommunication">
  <xs:annotation>
    <xs:documentation>tooltip: Personal communication summary: A personal communication that has been saved online or as hard-copy. description: This could be a widely distributed memo, an e-mail, a transcript from a conversation or interview, etc...</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="publisher" type="rp:ResponsibleParty" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Publisher summary: Organization that actually publishes the communication description: The organization that physically puts together the communication and publishes it.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="publicationPlace" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Publication Place summary: The location at which the work was published. description: The location at which the work was published. This is usually the name of the city in which the publishing house produced the work.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="communicationType" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Type of communication summary: The type of personal communication. description: The type of personal communication. Could be an email, letter, memo, transcript of conversation either hardcopy or online.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="recipient" type="rp:ResponsibleParty" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>tooltip: Recipient summary: Recipient of the communication description: The person, place or thing the personal communication was sent to.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-literature.xsd

Complex Type Map

Namespace

eml://ecoinformatics.org/literature-2.2.0

Annotations

tooltip: map

summary: This element describes the map that is being cited or
        cataloged.

description: This element describes the map that is being cited or
        cataloged, including its geographic coverage and
        scale.

Diagram

Used by

Element

CitationType/map

Model

publisher{0,1} , edition{0,1} , geographicCoverage* , scale{0,1}

Children

edition, geographicCoverage, publisher, scale

Source

<xs:complexType name="Map">
  <xs:annotation>
    <xs:documentation>tooltip: map summary: This element describes the map that is being cited or cataloged. description: This element describes the map that is being cited or cataloged, including its geographic coverage and scale.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="publisher" type="rp:ResponsibleParty" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Publisher summary: Organization that actually publishes the map description: The organization that physically puts together the map and publishes it.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="edition" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Map edition summary: The edition of the map being described. description: The edition field is to document the edition of the map that is being described.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="geographicCoverage" type="cov:GeographicCoverage" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>tooltip: Geographic coverage summary: Description of the geographic area which the map covers description: This element describes the geographic area which the map covers. Could be descriptive text or Cartesian coordinates of the area.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="scale" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Scale summary: The Map's scale description: The Map's scale</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-literature.xsd

Complex Type Generic

Namespace

eml://ecoinformatics.org/literature-2.2.0

Diagram

Used by

Element

CitationType/generic

Model

publisher , publicationPlace{0,1} , referenceType{0,1} , volume{0,1} , numberOfVolumes{0,1} , totalPages{0,1} , totalFigures{0,1} , totalTables{0,1} , edition{0,1} , originalPublication{0,1} , reprintEdition{0,1} , reviewedItem{0,1} , (ISBN | ISSN)

Children

ISBN, ISSN, edition, numberOfVolumes, originalPublication, publicationPlace, publisher, referenceType, reprintEdition, reviewedItem, totalFigures, totalPages, totalTables, volume

Source

<xs:complexType name="Generic">
  <xs:sequence>
    <xs:element name="publisher" type="rp:ResponsibleParty">
      <xs:annotation>
        <xs:documentation>tooltip: Publisher summary: Organization which actually publishes the reference description: The organization which physically puts together the reference and publishes it.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="publicationPlace" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Publication Place summary: The location at which the work was published. description: The location at which the work was published. This is usually the name of the city in which the publishing house produced the work.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="referenceType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Reference Type summary: The type of reference. description: The reference type describes the type of reference this generic type is being used to represent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="volume" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Reference volume summary: The volume of the reference that is part of a series. description: The volume field is used to describe the volume number of a reference that is part of a multi-volume series of references.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="numberOfVolumes" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Number of Volumes summary: Number of volumes in a collection description: Number of volumes in a collection</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="totalPages" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Total reference pages summary: The total number of pages in the references. description: The total pages field is used to describe the total number of pages in the references that is being described.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="totalFigures" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Number of figures in reference summary: The total number of figures in the reference. description: The total figures field is used to describe the total number of figures, diagrams, and plates in the reference that is being documented.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="totalTables" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Number of tables in reference summary: The total number of tables in a reference. description: The total tables field is used to describe the total number of tables that are present in the reference that is being documented.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="edition" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: edition summary: The edition of the generic reference being described. description: The edition field is to document the edition of the generic reference type that is being described.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="originalPublication" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Original Publication summary: References current publication to its original. description: Supplemental information about the original publication of the current reference.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="reprintEdition" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Reprint Edition summary: Reference for current edition that was originally published under a different title. description: Reference for current edition that was originally published under a different title.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="reviewedItem" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Reviewed Item summary: Reference types that are reviews of other references. description: Use for articles, chapters, audio visual, etc. that are critical review of books, cinema, art, or other works.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:choice minOccurs="0">
      <xs:element name="ISBN" type="res:NonEmptyStringType">
        <xs:annotation>
          <xs:documentation>tooltip: International Standard Book Number summary: The unique Internation Standard Book Number description: The ISBN, or International Standard Book Number that has been assigned to this literature resource.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="ISSN" type="res:NonEmptyStringType">
        <xs:annotation>
          <xs:documentation>tooltip: International Standard Serial Number summary: The unique Internation Standard Serial Number description: The ISSN, or International Standard Serial Number that has been assigned to this literature resource.</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:choice>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-literature.xsd

Complex Type AudioVisual

Namespace

eml://ecoinformatics.org/literature-2.2.0

Annotations

tooltip: audio visual

summary: This reference type is meant to cover all forms of audio
        and visual media.

description: This reference type is meant to cover all forms of
        audio and visual media, including film, video, broadcast, other
        electronic media.

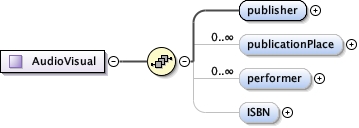

Diagram

Used by

Element

CitationType/audioVisual

Model

publisher , publicationPlace* , performer* , ISBN{0,1}

Children

ISBN, performer, publicationPlace, publisher

Source

<xs:complexType name="AudioVisual">
  <xs:annotation>
    <xs:documentation>tooltip: audio visual summary: This reference type is meant to cover all forms of audio and visual media. description: This reference type is meant to cover all forms of audio and visual media, including film, video, broadcast, other electronic media.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="publisher" type="rp:ResponsibleParty">
      <xs:annotation>
        <xs:documentation>tooltip: Publisher summary: Organization which actually distributes the video, film, the broadcaster etc... description: Organization which actually distributes the video, film, the broadcaster etc...</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="publicationPlace" type="res:NonEmptyStringType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>tooltip: Publication Place summary: The location at which the work was published. description: The location at which the work was published. This is usually the name of the city in which the publishing house produced the work.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="performer" type="rp:ResponsibleParty" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>tooltip: Performer summary: The performers in the audio visual production description: The performers involved in acting, narrating, or shown in the audio visual production.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ISBN" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: International Standard Book Number summary: The unique Internation Standard Book Number description: The ISBN, or International Standard Book Number that has been assigned to this literature resource.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-literature.xsd

Complex Type Presentation

Namespace

eml://ecoinformatics.org/literature-2.2.0

Annotations

tooltip: Unpublished Presentation

summary: An unpublished presentation from a conference, workshop,
        workgroup, symposium, etc.

description: An unpublished presentation from a conference,
        workshop, workgroup, symposium, etc. It will be provided upon request
        in either in paper and/or electronic form by contacting the authors. If
        the presentation was actually published in a proceedings, use the
        conferenceProceedings type instead.

Diagram

Used by

Element

CitationType/presentation

Model

conferenceName{0,1} , conferenceDate{0,1} , conferenceLocation{0,1}

Children

conferenceDate, conferenceLocation, conferenceName

Source

<xs:complexType name="Presentation">
  <xs:annotation>
    <xs:documentation>tooltip: Unpublished Presentation summary: An unpublished presentation from a conference, workshop, workgroup, symposium, etc. description: An unpublished presentation from a conference, workshop, workgroup, symposium, etc. It will be provided upon request in either in paper and/or electronic form by contacting the authors. If the presentation was actually published in a proceedings, use the conferenceProceedings type instead.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="conferenceName" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Conference Name summary: The name of the conference at which this presentation was given. description: The name of the conference at which this presentation was given.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="conferenceDate" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Conference Date summary: The date the conference was held. description: The date the conference was held.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="conferenceLocation" type="rp:Address" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Conference Location summary: The location where the conference was held. description: The location where the conference was held.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Schema location

file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-literature.xsd

Complex Type CitationListType

Namespace

eml://ecoinformatics.org/literature-2.2.0

Diagram

Used by

Element

DatasetType/literatureCited

Model

citation | bibtex

Children

bibtex, citation

Source

<xs:complexType name="CitationListType">
  <xs:choice minOccurs="1" maxOccurs="unbounded">
    <xs:element name="citation" type="CitationType">
      <xs:annotation>
        <xs:documentation>tooltip: citation summary: A citation within a list of citations. description: A citation within a list of citations, usually used for a literatureCited cited list or similar. Each citation is formatted following the EML CitationType structure.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="bibtex" type="xs:string">
      <xs:annotation>
        <xs:documentation>tooltip: Bibtex Citation List summary: List of citations in Bibtex format. description: The bibtex field provides a parseable list of citations formatted according to the Bibtex formatting conventions. Each citation entry is assigned a unique key that must be unique across all bibtex fields in the EML document. The citation key can be used in markdown sections of the text to refer to this citation using the pandoc-style of inline citation keys. See the markdown element for more details. The record is delimited using curly braces. Most reference software can both import and export citations in Bibtex format, so this is a simpler representation to produce and consume than native EML citation representations.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:choice>
</xs:complexType>

Schema location

file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-literature.xsd
