Imported schema eml-protocol.xsd
Namespace eml://ecoinformatics.org/protocol-2.2.0
Annotations
'$RCSfile: eml-protocol.xsd,v $'
       Copyright: 1997-2002 Regents of the University of California,
                            University of New Mexico, and
                            Arizona State University
        Sponsors: National Center for Ecological Analysis and Synthesis and
                  Partnership for Interdisciplinary Studies of Coastal Oceans,
                     University of California Santa Barbara
                  Long-Term Ecological Research Network Office,
                     University of New Mexico
                  Center for Environmental Studies, Arizona State University
   Other funding: National Science Foundation (see README for details)
                  The David and Lucile Packard Foundation
     For Details: http://knb.ecoinformatics.org/

        '$Author: obrien $'
          '$Date: 2008-09-26 23:59:46 $'
      '$Revision: 1.60 $'

    This program is free software; you can redistribute it and/or modify
    it under the terms of the GNU General Public License as published by
    the Free Software Foundation; either version 2 of the License, or
    (at your option) any later version.

    This program is distributed in the hope that it will be useful,
    but WITHOUT ANY WARRANTY; without even the implied warranty of
    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
    GNU General Public License for more details.

    You should have received a copy of the GNU General Public License
    along with this program; if not, write to the Free Software
    Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA  02111-1307  USA
moduleName: eml-protocol

moduleDescription:


              The eml-protocol module - Research protocol specific information




recommendedUsage: Use eml-protocol to describe prescriptive
        procedures that can be associated with other descriptive or
        prescriptive procedures.

standAlone: yes
Properties
attribute form default unqualified
element form default unqualified
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-protocol.xsd
Element protocol
Namespace eml://ecoinformatics.org/protocol-2.2.0
Annotations
tooltip: A prescriptive procedure

summary: A reusable container for information related to
        a prescriptive procedure.

description: The protocol field provides a container for other
        related fields, such as proceduralStep and ResourceGroup.
Diagram
Diagram NO_NAMESPACE.tmp#ProtocolType_id NO_NAMESPACE.tmp#ProtocolType_system NO_NAMESPACE.tmp#ProtocolType_scope NO_NAMESPACE.tmp#ResourceGroup_alternateIdentifier NO_NAMESPACE.tmp#ResourceGroup_shortName NO_NAMESPACE.tmp#ResourceGroup_title NO_NAMESPACE.tmp#ResourceGroup_creator NO_NAMESPACE.tmp#ResourceGroup_metadataProvider NO_NAMESPACE.tmp#ResourceGroup_associatedParty NO_NAMESPACE.tmp#ResourceGroup_pubDate NO_NAMESPACE.tmp#ResourceGroup_language NO_NAMESPACE.tmp#ResourceGroup_series NO_NAMESPACE.tmp#ResourceGroup_abstract NO_NAMESPACE.tmp#ResourceGroup_keywordSet NO_NAMESPACE.tmp#ResourceGroup_additionalInfo NO_NAMESPACE.tmp#ResourceGroup_intellectualRights NO_NAMESPACE.tmp#ResourceGroup_licensed NO_NAMESPACE.tmp#ResourceGroup_distribution NO_NAMESPACE.tmp#ResourceGroup_coverage NO_NAMESPACE.tmp#ResourceGroup_annotation resource-2_2_0.tmp#ResourceGroup NO_NAMESPACE.tmp#ProtocolType_proceduralStep NO_NAMESPACE.tmp#ReferencesGroup_references resource-2_2_0.tmp#ReferencesGroup protocol-2_2_0.tmp#ProtocolType
Type ProtocolType
Properties
content complex
Model
Children abstract, additionalInfo, alternateIdentifier, annotation, associatedParty, coverage, creator, distribution, intellectualRights, keywordSet, language, licensed, metadataProvider, proceduralStep, pubDate, references, series, shortName, title
Instance
<protocol id="" scope="document" system="" xmlns="eml://ecoinformatics.org/protocol-2.2.0">
  <alternateIdentifier system="">{0,unbounded}</alternateIdentifier>
  <shortName>{0,1}</shortName>
  <title xml:lang="">{1,unbounded}</title>
  <creator id="" scope="document" system="">{1,unbounded}</creator>
  <metadataProvider id="" scope="document" system="">{0,unbounded}</metadataProvider>
  <associatedParty id="" scope="document" system="">{0,unbounded}</associatedParty>
  <pubDate>{0,1}</pubDate>
  <language xml:lang="">{0,1}</language>
  <series>{0,1}</series>
  <abstract xml:lang="">{0,1}</abstract>
  <keywordSet>{0,unbounded}</keywordSet>
  <additionalInfo xml:lang="">{0,unbounded}</additionalInfo>
  <intellectualRights xml:lang="">{0,1}</intellectualRights>
  <licensed>{0,unbounded}</licensed>
  <distribution id="" scope="document" system="">{0,unbounded}</distribution>
  <coverage id="" scope="document" system="">{0,1}</coverage>
  <annotation>{0,unbounded}</annotation>
  <proceduralStep>{0,unbounded}</proceduralStep>
  <references system="">{1,1}</references>
</protocol>
Attributes
QName Type Default Use
id IDType optional
scope ScopeType document optional
system SystemType optional
Source
<xs:element name="protocol" type="ProtocolType">
  <xs:annotation>
    <xs:documentation>tooltip: A prescriptive procedure summary: A reusable container for information related to a prescriptive procedure. description: The protocol field provides a container for other related fields, such as proceduralStep and ResourceGroup.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-protocol.xsd
Complex Type ProtocolType
Namespace eml://ecoinformatics.org/protocol-2.2.0
Annotations
tooltip: A prescriptive procedure; a standardized method


summary: A reusable container for information related to
        a prescriptive procedure.

description: The ProtocolType container defines a number of
        reusable fields that can be referenced from multiple EML
        modules.  It represents well-defined, prescriptive procedures
        that can be used to document other prescriptive procedures or
        descriptive procedures such as methods.

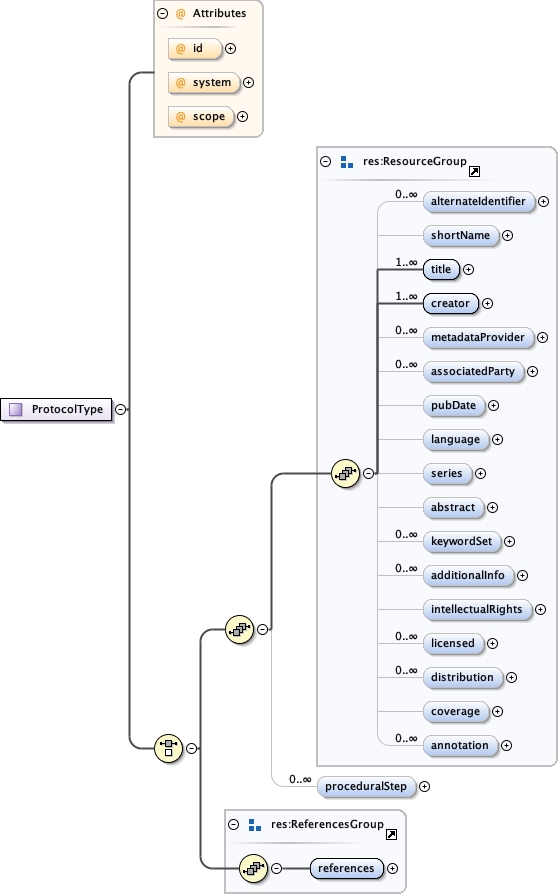

Diagram
Diagram NO_NAMESPACE.tmp#ProtocolType_id NO_NAMESPACE.tmp#ProtocolType_system NO_NAMESPACE.tmp#ProtocolType_scope NO_NAMESPACE.tmp#ResourceGroup_alternateIdentifier NO_NAMESPACE.tmp#ResourceGroup_shortName NO_NAMESPACE.tmp#ResourceGroup_title NO_NAMESPACE.tmp#ResourceGroup_creator NO_NAMESPACE.tmp#ResourceGroup_metadataProvider NO_NAMESPACE.tmp#ResourceGroup_associatedParty NO_NAMESPACE.tmp#ResourceGroup_pubDate NO_NAMESPACE.tmp#ResourceGroup_language NO_NAMESPACE.tmp#ResourceGroup_series NO_NAMESPACE.tmp#ResourceGroup_abstract NO_NAMESPACE.tmp#ResourceGroup_keywordSet NO_NAMESPACE.tmp#ResourceGroup_additionalInfo NO_NAMESPACE.tmp#ResourceGroup_intellectualRights NO_NAMESPACE.tmp#ResourceGroup_licensed NO_NAMESPACE.tmp#ResourceGroup_distribution NO_NAMESPACE.tmp#ResourceGroup_coverage NO_NAMESPACE.tmp#ResourceGroup_annotation resource-2_2_0.tmp#ResourceGroup NO_NAMESPACE.tmp#ProtocolType_proceduralStep NO_NAMESPACE.tmp#ReferencesGroup_references resource-2_2_0.tmp#ReferencesGroup
Used by
Model
Children abstract, additionalInfo, alternateIdentifier, annotation, associatedParty, coverage, creator, distribution, intellectualRights, keywordSet, language, licensed, metadataProvider, proceduralStep, pubDate, references, series, shortName, title
Attributes
QName Type Default Use
id IDType optional
scope ScopeType document optional
system SystemType optional
Source
<xs:complexType name="ProtocolType">
  <xs:annotation>
    <xs:documentation>tooltip: A prescriptive procedure; a standardized method summary: A reusable container for information related to a prescriptive procedure. description: The ProtocolType container defines a number of reusable fields that can be referenced from multiple EML modules. It represents well-defined, prescriptive procedures that can be used to document other prescriptive procedures or descriptive procedures such as methods.</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:sequence>
      <xs:group ref="res:ResourceGroup"/>
      <xs:element name="proceduralStep" type="md:ProcedureStepType" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:group ref="res:ReferencesGroup"/>
  </xs:choice>
  <xs:attribute name="id" type="res:IDType" use="optional"/>
  <xs:attribute name="system" type="res:SystemType" use="optional"/>
  <xs:attribute name="scope" type="res:ScopeType" use="optional" default="document"/>
</xs:complexType>
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-protocol.xsd
