<spatialVector id="" scope="document" system="" xmlns="eml://ecoinformatics.org/spatialVector-2.2.0">
  <alternateIdentifier system="">{0,unbounded}</alternateIdentifier>
  <entityName>{1,1}</entityName>
  <entityDescription>{0,1}</entityDescription>
  <physical id="" scope="document" system="">{0,unbounded}</physical>
  <coverage id="" scope="document" system="">{0,1}</coverage>
  <methods>{0,1}</methods>
  <additionalInfo xml:lang="">{0,unbounded}</additionalInfo>
  <annotation>{0,unbounded}</annotation>
  <attributeList id="">{1,1}</attributeList>
  <constraint id="" scope="document" system="">{0,unbounded}</constraint>
  <geometry>{1,unbounded}</geometry>
  <geometricObjectCount>{0,1}</geometricObjectCount>
  <topologyLevel>{0,1}</topologyLevel>
  <spatialReference id="" scope="document" system="">{0,1}</spatialReference>
  <horizontalAccuracy>{0,1}</horizontalAccuracy>
  <verticalAccuracy>{0,1}</verticalAccuracy>
  <references system="">{1,1}</references>
</spatialVector>

<xs:element name="spatialVector" type="SpatialVectorType">
  <xs:annotation>
    <xs:documentation>tooltip: Spatial Vector summary: Description of a spatial data entity based on features represented by vectors description: Description of a spatial data entity based on features represented by vectors</xs:documentation>
  </xs:annotation>
</xs:element>

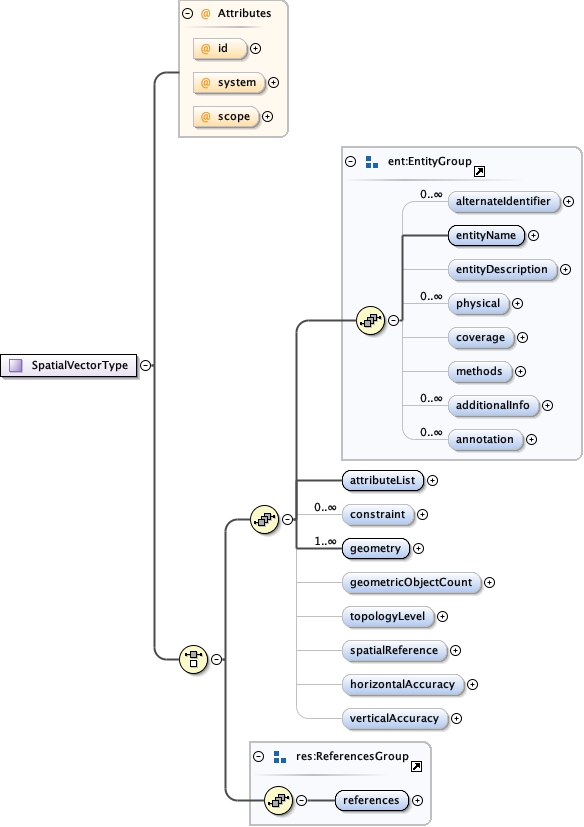

<xs:complexType name="SpatialVectorType">
  <xs:annotation>
    <xs:documentation>tooltip: Spatial Vector Type summary: description:</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:sequence>
      <xs:group ref="ent:EntityGroup"/>
      <xs:element name="attributeList" type="att:AttributeListType">
        <xs:annotation>
          <xs:documentation>tooltip: Attribute List summary: The list of attributes associated with this entity. description: The list of attributes associated with this entity. For more information see the eml-attribute module.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="constraint" type="con:ConstraintType" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>tooltip: Constraint summary: Description of any relational constraints on this entity. description: Description of any relational constraints on this entity. For more information see the eml-constraint module.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="geometry" type="GeometryType" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>tooltip: Geometry summary: Type of geometric feature(s) represented in the entity. description: Geometric feature classification is based on an enumeration of simple feature classes defined by the OpenGIS consortium and implemented in Geographic Markup Language as simple feature types.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="geometricObjectCount" type="res:NonEmptyStringType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>tooltip: Geometric Object Count summary: Total number of the geometric objects occurring in the dataset. description: Total number of the geometric objects occurring in the dataset.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="topologyLevel" type="TopologyLevel" minOccurs="0">
        <xs:annotation>
          <xs:documentation>tooltip: Topology Level summary: Code which identifies the degree of complexity. description: This element describes the relative complexity of the geometric information in the data file.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="spatialReference" type="spref:SpatialReferenceType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>tooltip: Spatial Reference summary: description:</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="horizontalAccuracy" type="DataQuality" minOccurs="0">
        <xs:annotation>
          <xs:documentation>tooltip: Horizontal Accuracy summary: Horizontal positional accuracy of the data description: Horizontal positional accuracy of the data expressed as either text or quantitative assessment.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="verticalAccuracy" type="DataQuality" minOccurs="0">
        <xs:annotation>
          <xs:documentation>tooltip: Vertical Accuracy summary: Vertical positional accuracy of the data description: Vertical positional accuracy of the data expressed as either text or quantitative assessment.</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
    <xs:group ref="res:ReferencesGroup"/>
  </xs:choice>
  <xs:attribute name="id" type="res:IDType" use="optional"/>
  <xs:attribute name="system" type="res:SystemType" use="optional"/>
  <xs:attribute name="scope" type="res:ScopeType" use="optional" default="document"/>
</xs:complexType>

<xs:simpleType name="GeometryType">
  <xs:annotation>
    <xs:documentation>tooltip: Geometry Type summary: description:</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Point"/>
    <xs:enumeration value="LineString"/>
    <xs:enumeration value="LinearRing"/>
    <xs:enumeration value="Polygon"/>
    <xs:enumeration value="MultiPoint"/>
    <xs:enumeration value="MultiLineString"/>
    <xs:enumeration value="MultiPolygon"/>
    <xs:enumeration value="MultiGeometry"/>
  </xs:restriction>
</xs:simpleType>

<xs:simpleType name="TopologyLevel">
  <xs:annotation>
    <xs:documentation>tooltip: Topology Level Type summary: description:</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="geometryOnly"/>
    <xs:enumeration value="nonPlanarGraph"/>
    <xs:enumeration value="planarLineGraph"/>
    <xs:enumeration value="fullPlanarGraph"/>
    <xs:enumeration value="surfaceGraph"/>
    <xs:enumeration value="fullTopology3D"/>
  </xs:restriction>
</xs:simpleType>

<xs:complexType name="DataQuality">
  <xs:annotation>
    <xs:documentation>tooltip: Data Quality Type summary: description:</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="accuracyReport" type="res:NonEmptyStringType">
      <xs:annotation>
        <xs:documentation>tooltip: Accuracy Report summary: A qualitative statement about the accuracy of the data. description: A text statement of the data quality, included the means by which it was determined.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="quantitativeAccuracyReport" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>tooltip: Quantitative Accuracy Report summary: A quantitative assessment of the data quality. description: A quantitative assessment of the data quality expressed as a value and the method of its determination.</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="quantitativeAccuracyValue" type="res:NonEmptyStringType">
            <xs:annotation>
              <xs:documentation>tooltip: Quantitative Accuracy Value summary: The value resulting from the accuracy test. description: The value resulting from the accuracy test. Typically, this will be expressed in units corresponding to those declared for the parameter being assessed.</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="quantitativeAccuracyMethod" type="res:NonEmptyStringType">
            <xs:annotation>
              <xs:documentation>tooltip: Quantitative Accuracy Method summary: The method used to calculate the accuracy value. description: Identification and explanation of the method used to calculate the quantitative accuracy assessment.</xs:documentation>
            </xs:annotation>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>
