<storedProcedure id="" scope="document" system="" xmlns="eml://ecoinformatics.org/storedProcedure-2.2.0">
  <alternateIdentifier system="">{0,unbounded}</alternateIdentifier>
  <entityName>{1,1}</entityName>
  <entityDescription>{0,1}</entityDescription>
  <physical id="" scope="document" system="">{0,unbounded}</physical>
  <coverage id="" scope="document" system="">{0,1}</coverage>
  <methods>{0,1}</methods>
  <additionalInfo xml:lang="">{0,unbounded}</additionalInfo>
  <annotation>{0,unbounded}</annotation>
  <attributeList id="">{1,1}</attributeList>
  <constraint id="" scope="document" system="">{0,unbounded}</constraint>
  <parameter>{0,unbounded}</parameter>
  <references system="">{1,1}</references>
</storedProcedure>

<xs:element name="storedProcedure" type="StoredProcedureType">
  <xs:annotation>
    <xs:documentation>tooltip: Stored Procedure> summary: The storedProcedure element documents stored procedures. description: The storedProcedure element is meant to capture information on procedures that produce data output in the form of a data table. In an RDBMS one can code complex queries and transactions into stored procedures and then invoke them directly from front-end applications. This element allows the optional description of any parameters that are expected to be passed to the procedure when it is called. A common use of a stored procedure is to rotate a data table from attributes in columns to attributes in rows for statistical analysis.</xs:documentation>
  </xs:annotation>
</xs:element>

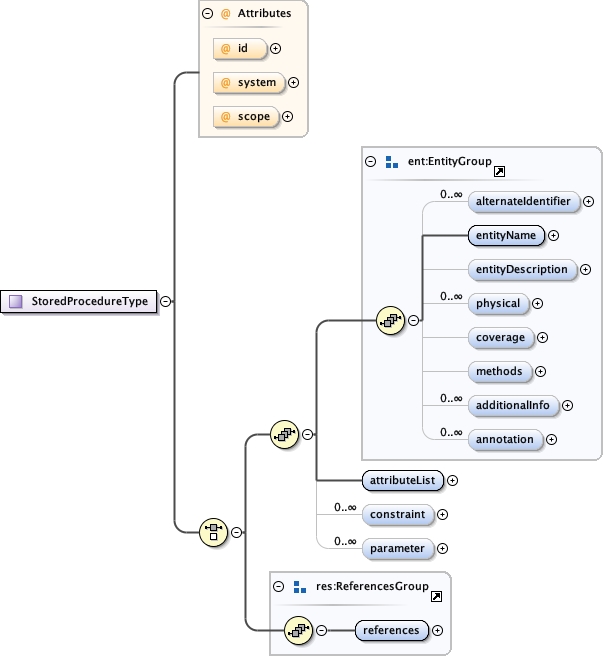

<xs:complexType name="StoredProcedureType">
  <xs:annotation>
    <xs:documentation>tooltip: Stored Procedure complex type> summary: Structure for documenting a stored procedure description: The StoredProcedureType complex type defines the structure for documenting a stored procedure.</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:sequence>
      <xs:group ref="ent:EntityGroup"/>
      <xs:element name="attributeList" type="att:AttributeListType">
        <xs:annotation>
          <xs:documentation>tooltip: Attribute List summary: The list of attributes associated with this entity. description: The list of attributes associated with this entity. For more information see the eml-attribute module.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="constraint" type="con:ConstraintType" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>tooltip: Constraint summary: description: Description of any relational constraints on ' this entity. For more information see the eml-constraint module.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="parameter" type="ParameterType" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>tooltip: Parameter summary: A parameter that is required as input to the stored procedure. description: The parameter elements defines the fields that may be required to invoke a stored procedure.</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
    <xs:group ref="res:ReferencesGroup"/>
  </xs:choice>
  <xs:attribute name="id" type="res:IDType" use="optional"/>
  <xs:attribute name="system" type="res:SystemType" use="optional"/>
  <xs:attribute name="scope" type="res:ScopeType" use="optional" default="document"/>
</xs:complexType>

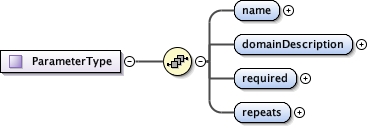

<xs:complexType name="ParameterType">
  <xs:annotation>
    <xs:documentation>tooltip: Parameter complex type summary: The structure for defining a parameter that is required as input to the stored procedure. description: The parameter complex type defines the structure for documenting the parameters that may be required to invoke a stored procedure.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="name" type="res:NonEmptyStringType">
      <xs:annotation>
        <xs:documentation>tooltip: Parameter Name summary: The name of the parameter. description: The value of the name field is the name of the parameter.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="domainDescription" type="res:NonEmptyStringType">
      <xs:annotation>
        <xs:documentation>tooltip: Domain Description summary: A description of domain of valid values for the parameter. description: The domainDescription field is used to describe the valid entries for the parameter being described. A stored procedure will work only when the parameter's value corresponds to an actual value in a database.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="required" type="xs:boolean">
      <xs:annotation>
        <xs:documentation>tooltip: Required summary: Whether or not the parameter is required. description: The required field is used to document whether the parameter being described is or is not required when invoking the stored procedure.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="repeats" type="xs:boolean">
      <xs:annotation>
        <xs:documentation>tooltip: Repeats summary: Whether or not the parameter repeats. description: The repeats field is used to document whether or not the parameter being described can be repeated when invoking the stored procedure.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
