Imported schema eml-entity.xsd
Namespace eml://ecoinformatics.org/entity-2.2.0
Annotations
'$RCSfile: eml-entity.xsd,v $'
       Copyright: 1997-2002 Regents of the University of California,
                            University of New Mexico, and
                            Arizona State University
        Sponsors: National Center for Ecological Analysis and Synthesis and
                  Partnership for Interdisciplinary Studies of Coastal Oceans,
                     University of California Santa Barbara
                  Long-Term Ecological Research Network Office,
                     University of New Mexico
                  Center for Environmental Studies, Arizona State University
   Other funding: National Science Foundation (see README for details)
                  The David and Lucile Packard Foundation
     For Details: http://knb.ecoinformatics.org/

        '$Author: obrien $'
          '$Date: 2009-02-25 23:51:54 $'
      '$Revision: 1.89 $'

    This program is free software; you can redistribute it and/or modify
    it under the terms of the GNU General Public License as published by
    the Free Software Foundation; either version 2 of the License, or
    (at your option) any later version.

    This program is distributed in the hope that it will be useful,
    but WITHOUT ANY WARRANTY; without even the implied warranty of
    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
    GNU General Public License for more details.

    You should have received a copy of the GNU General Public License
    along with this program; if not, write to the Free Software
    Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA  02111-1307  USA
moduleName: eml-entity

moduleDescription:


              The eml-entity module - Entity level information within datasets




recommendedUsage: This module is used to describe data
        entities.

standAlone: Only when 'otherEntity' is used.
Properties
attribute form default unqualified
element form default unqualified
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-entity.xsd
Element otherEntity
Namespace eml://ecoinformatics.org/entity-2.2.0
Annotations
tooltip: Other Entity

summary: Descriptor of single data entity in a dataset of a type
        not specifically described in eml.

description: The other entity element is a descriptor of a
        not-otherwise-defined entity in the dataset, identified by its name.
        The element can contain information about the entity's basic identity,
        its temporal, geographic and taxonomic coverage, and its
        type.
Diagram
Diagram NO_NAMESPACE.tmp#OtherEntityType_id NO_NAMESPACE.tmp#OtherEntityType_system NO_NAMESPACE.tmp#OtherEntityType_scope NO_NAMESPACE.tmp#EntityGroup_alternateIdentifier NO_NAMESPACE.tmp#EntityGroup_entityName NO_NAMESPACE.tmp#EntityGroup_entityDescription NO_NAMESPACE.tmp#EntityGroup_physical NO_NAMESPACE.tmp#EntityGroup_coverage NO_NAMESPACE.tmp#EntityGroup_methods NO_NAMESPACE.tmp#EntityGroup_additionalInfo NO_NAMESPACE.tmp#EntityGroup_annotation entity-2_2_0.tmp#EntityGroup NO_NAMESPACE.tmp#OtherEntityType_attributeList NO_NAMESPACE.tmp#OtherEntityType_constraint NO_NAMESPACE.tmp#OtherEntityType_entityType NO_NAMESPACE.tmp#ReferencesGroup_references resource-2_2_0.tmp#ReferencesGroup entity-2_2_0.tmp#OtherEntityType
Type OtherEntityType
Properties
content complex
Model
Children additionalInfo, alternateIdentifier, annotation, attributeList, constraint, coverage, entityDescription, entityName, entityType, methods, physical, references
Instance
<otherEntity id="" scope="document" system="" xmlns="eml://ecoinformatics.org/entity-2.2.0">
  <alternateIdentifier system="">{0,unbounded}</alternateIdentifier>
  <entityName>{1,1}</entityName>
  <entityDescription>{0,1}</entityDescription>
  <physical id="" scope="document" system="">{0,unbounded}</physical>
  <coverage id="" scope="document" system="">{0,1}</coverage>
  <methods>{0,1}</methods>
  <additionalInfo xml:lang="">{0,unbounded}</additionalInfo>
  <annotation>{0,unbounded}</annotation>
  <attributeList id="">{0,1}</attributeList>
  <constraint id="" scope="document" system="">{0,unbounded}</constraint>
  <entityType>{1,1}</entityType>
  <references system="">{1,1}</references>
</otherEntity>
Attributes
QName Type Default Use
id IDType optional
scope ScopeType document optional
system SystemType optional
Source
<xs:element name="otherEntity" type="OtherEntityType">
  <xs:annotation>
    <xs:documentation>tooltip: Other Entity summary: Descriptor of single data entity in a dataset of a type not specifically described in eml. description: The other entity element is a descriptor of a not-otherwise-defined entity in the dataset, identified by its name. The element can contain information about the entity's basic identity, its temporal, geographic and taxonomic coverage, and its type.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-entity.xsd
Complex Type OtherEntityType
Namespace eml://ecoinformatics.org/entity-2.2.0

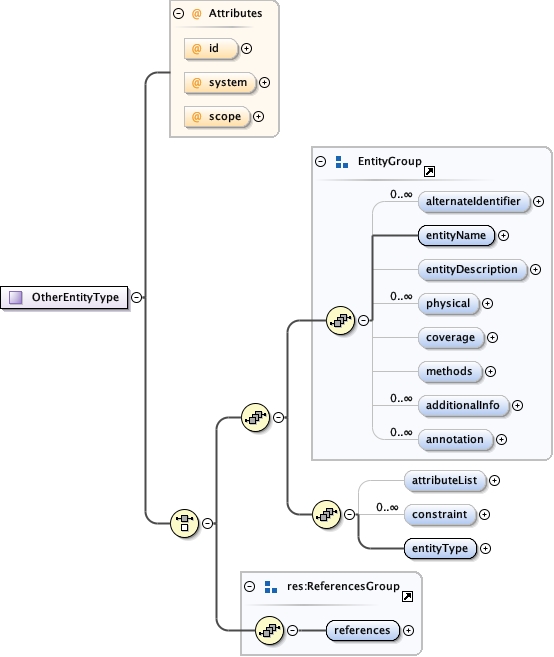

Diagram
Diagram NO_NAMESPACE.tmp#OtherEntityType_id NO_NAMESPACE.tmp#OtherEntityType_system NO_NAMESPACE.tmp#OtherEntityType_scope NO_NAMESPACE.tmp#EntityGroup_alternateIdentifier NO_NAMESPACE.tmp#EntityGroup_entityName NO_NAMESPACE.tmp#EntityGroup_entityDescription NO_NAMESPACE.tmp#EntityGroup_physical NO_NAMESPACE.tmp#EntityGroup_coverage NO_NAMESPACE.tmp#EntityGroup_methods NO_NAMESPACE.tmp#EntityGroup_additionalInfo NO_NAMESPACE.tmp#EntityGroup_annotation entity-2_2_0.tmp#EntityGroup NO_NAMESPACE.tmp#OtherEntityType_attributeList NO_NAMESPACE.tmp#OtherEntityType_constraint NO_NAMESPACE.tmp#OtherEntityType_entityType NO_NAMESPACE.tmp#ReferencesGroup_references resource-2_2_0.tmp#ReferencesGroup
Used by
Model
Children additionalInfo, alternateIdentifier, annotation, attributeList, constraint, coverage, entityDescription, entityName, entityType, methods, physical, references
Attributes
QName Type Default Use
id IDType optional
scope ScopeType document optional
system SystemType optional
Source
<xs:complexType name="OtherEntityType">
  <xs:choice>
    <xs:sequence>
      <xs:group ref="EntityGroup"/>
      <xs:sequence>
        <xs:element name="attributeList" type="att:AttributeListType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>tooltip: Attribute List summary: The list of attributes associated with this entity. description: The list of attributes associated with this entity. For more information see the eml-attribute module.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="constraint" type="con:ConstraintType" minOccurs="0" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>tooltip: Constraint summary: description: Description of any relational constraints on ' this entity. For more information see the eml-constraint module.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="entityType" type="res:NonEmptyStringType">
          <xs:annotation>
            <xs:documentation>tooltip: Entity type summary: Contains the name of the type for this entity. description: The entityType field contains the name of the entity's type. The entity's type is typically the name of the type of data represented in the entity, such as "photograph". This field is used only if this is an 'other' entity and you want to specify the kind of "other" entity this is.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:sequence>
    <xs:group ref="res:ReferencesGroup"/>
  </xs:choice>
  <xs:attribute name="id" type="res:IDType" use="optional"/>
  <xs:attribute name="system" type="res:SystemType" use="optional"/>
  <xs:attribute name="scope" type="res:ScopeType" use="optional" default="document"/>
</xs:complexType>
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-entity.xsd
Element Group EntityGroup
Namespace eml://ecoinformatics.org/entity-2.2.0
Annotations
tooltip: Base Entity descriptors

summary: Basic information about an entity common to all entity
        types.

description: The EntityGroup defines the common structure for
        descriptions of any type of entity, including the name and attributes
        of the entity. The term entity is used in the sense of an entity in a
        relational model. The most common entity is a table, something with
        columns and rows, but can also represent an image or other type of
        data. See 'eml-attribute' for descriptions of the required attribute
        fields.
Diagram
Diagram NO_NAMESPACE.tmp#EntityGroup_alternateIdentifier NO_NAMESPACE.tmp#EntityGroup_entityName NO_NAMESPACE.tmp#EntityGroup_entityDescription NO_NAMESPACE.tmp#EntityGroup_physical NO_NAMESPACE.tmp#EntityGroup_coverage NO_NAMESPACE.tmp#EntityGroup_methods NO_NAMESPACE.tmp#EntityGroup_additionalInfo NO_NAMESPACE.tmp#EntityGroup_annotation
Used by
Model
Children additionalInfo, alternateIdentifier, annotation, coverage, entityDescription, entityName, methods, physical
Source
<xs:group name="EntityGroup">
  <xs:annotation>
    <xs:documentation>tooltip: Base Entity descriptors summary: Basic information about an entity common to all entity types. description: The EntityGroup defines the common structure for descriptions of any type of entity, including the name and attributes of the entity. The term entity is used in the sense of an entity in a relational model. The most common entity is a table, something with columns and rows, but can also represent an image or other type of data. See 'eml-attribute' for descriptions of the required attribute fields.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="alternateIdentifier" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>tooltip: Alternate Identifier summary: A secondary identifier for this entity description: An additional, secondary identifier for this entity. The primary identifier belongs in the "id" attribute, but additional identifiers that are used to label this entity, possibly from different data management systems, can be listed here.</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="xs:string">
            <xs:attribute name="system" type="res:SystemType" use="optional">
              <xs:annotation>
                <xs:documentation>tooltip: Identifier System summary: The system in which this id is relevant description: The information management system within which this identifier has relevance. Generally, the identifier would be unique within the "system" and would be sufficient to retrieve the entity from the system. The system is often a URL or URI that identifies the main entry point for the information management system.</xs:documentation>
              </xs:annotation>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="entityName" type="res:NonEmptyStringType">
      <xs:annotation>
        <xs:documentation>tooltip: Entity name summary: The name of the entity name description: The name identifies the entity in the dataset: file name, name of database table, etc.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="entityDescription" type="res:NonEmptyStringType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: Entity description summary: General description of the entity and its contents description: Text generally describing the entity, its type, and relevant information about the data in the entity.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="physical" type="phys:PhysicalType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>tooltip: physical descriptors summary: Description of the physical format of the entity description: Information on the physical format of this entity. Each logical entity can be serialized in one or more physical formats, which can be described here. For each physical format, provide a "physical" element that describes the format and how to obtain that version. Two physical elements MUST describe the same entity precisely (i.e., after obtaining and parsing the physical data stream described under each physical element, one MUST end with an identical logical entity). For more information see the eml-physical module.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="coverage" type="cov:Coverage" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: coverage descriptors summary: Information on the geographic, spatial and temporal coverages used in this entity. description: Information on the geographic, spatial and temporal coverages used in this entity. Please see the eml-coverage module for more information.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="methods" type="md:MethodsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>tooltip: method descriptions summary: description: Information on the specific methods used to collect information in this entity. Please see the eml-methods module for more information.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="additionalInfo" type="txt:TextType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>tooltip: Additional Information summary: Any extra information pertitent to the entity. description: This field provides any information that is not characterized by the other entity metadata fields.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="annotation" type="sem:SemanticAnnotation" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>tooltip: Semantic Annotation summary: A precisely-defined semantic statement about this entity. description: An annotation represents a precisely-defined semantic statement that applies to this entity. This semantic statement is used to associate precise measurement semantics with the entity. Each annotation consists of a propertyURI and valueURI, which define a property and a value that apply to the entity. The associated labels can be used to display the property and value to users. Each URI is resolvable to a controlled vocabulary that provides a definition, relationships to other terms, and multiple labels for displaying the statement.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:group>
Schema location file:/Volumes/mob/EML_schema/EML-2.2.0/git_checkouts/eml/tmp/eml-entity.xsd
